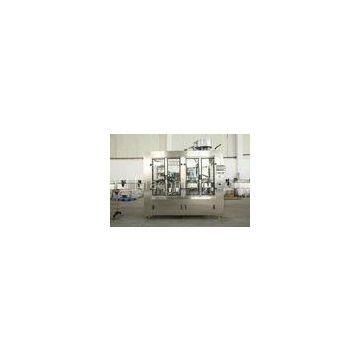

Automatic 3 In 1 Glass Bottle Filling Machine for Carbonated Drink Beer / Soda / Cola

Brand Name	Hyford		Place of Origin	China
Model Number	BPGF24-24-8

Delivery Time:40 working days
Certification:CE,ISO,SGS,BV

Automatic 3 In 1 Glass Bottle Filling Machine for Carbonated Drink Beer / Soda / Cola

Quick Detail:

Type: Filling Machine Condition: New Application: beverages Packaging Type: glass bottles, Automatic Grade: Automatic Driven Type: Electric Voltage: 220/380V Power: 4KW Place of Origin: Jiangsu, China (Mainland) Brand Name: Hyford Model Number: BPGF24-24-8 Weight: 5000kg Certification: CE, ISO, SGS, BV After-sales Service Provided: Engineers available to service machinery overseas Material: High quality SUS304 stainless steel Filling Principle: Normal Pressure or Balanced Pressure or Hot Filling Capping: Screw Capping or Press Capping Number of Washing Heads: 24 Number of Filling Heads: 24 Number of Capping Heads: 8 Capacity: 6000B/h for 500ml Shipment: by Sea/Train

Description:

1. This 3-in-1 glass bottle filling machine is made of high quality 304 stainless steel, totally ensure it lasting, anti-rust and easy cleaning.

2. The 3-in-1 glass bottle filling machine contains washer, filler and capper in one body of in case. The whole process is automatic, time-saving and less labor.

3. The 3-in-1 glass bottle filling machine adopts imported key components, like central control PLC, pressure transmitter, and electromagnetic chaos pneumatic servo measurement level, to ensure the stability of liquid surface.

4. The 3-in-1 glass bottle filling machine adopts soft backing board unit to ensure a safe and stable automatically filling system. Once no bottle or unqualified bottle builds constant pressure, the valve will close automatically.

5. The part of filling setup has been designed with overload clutch as a protector. It will stop automatically when any accident happens.

6. The 3-in-1 glass bottle filling machine adopts accurate high-fluid level control, ensuring filling quality, and uses hermetically pressure filling with function of no foam and not spilling out.

7. The 3-in-1 glass bottle filling machine has a stable start-up, operating from low speed to high speed.

Specifications:

Automatic 3-in-1 Glass Bottle Filling Machine--Main data?

Model	BPGF18-18-6	BPGF24-24-8	BPGF32-32-10	BPGF40-40-12
Production Capacity (500ml) (B/h)	4000-5000	6000-8000	8000-10000	10000-12000
Washing Heads	18	24	32	40
Filling Heads	18	24	32	40
Capping Heads	6	8	10	12
Suitable Bottle	Glass Bottle
Suitable Bottle Size	Round or Square
Diameter of Bottle (mm)	Φ50-Φ110
Height of Bottle (mm)	150-310
Filling Manners	Normal Pressure, Balanced Pressure, or Hot Filling (Depends on Beverage Type)
Power Consumption (KW)	3.5	4.5	6.5	7.5
Dimension (mm)	2300*1900*2300	2800*2100*2300	4200*2300*2300	5000*2800*2400
Weight (kg)	3500	4500
