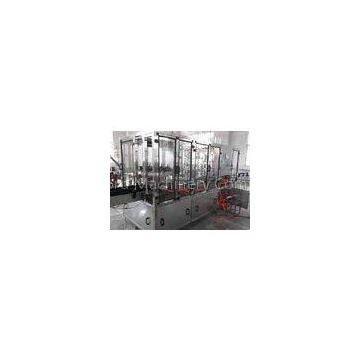

Linear Automatic Bottle Filling Machine for Carbonated drink High Speed , Cylinder Control

Linear Automatic Bottle Filling Machine With High Speed CGF 4-4-1 , Cylinder Control

Quick Detail:

1. Model: CGF4-4-1

2. Number of heads: 4 washing heads, 4 filling heads, and 1 capping heads

3. Cylinder automatic control.

4. Capacity 500BPH

5. Input conveyors: 1meters

6. Output conveyors: 1meters

7. Size: 4000mm*1200mm*2200mm

8. Power: 2kw

9. PLC: Mitsubishi

10. Cylinder: AIRTAC from Taiwan

11. Weight: 1500kg

Description:

?The Linear type washing filling capping machine for water is special machine for 3-10L big pet bottle. It has 4-12 washing heads, when bottles come to the washing heads, the cylinder will push bottles into the washing heads, and washing heads will reverse the bottles. Then pump will give pressure and washing heads spurting water to wash the bottles.

After washing, the bottles will come to the filler. The cylinder will push bottles into the filler, then filling will come down to fill the bottles. After filling the bottles will go to the capping. One bottle will take one lids, then capping machine will screw the lids on the bottle.

Specifications:

Washing Heads: 3-18

Filling Heads: 3-18

Capping Heads: 1-6

Suitable Bottle Size: 3-7L PET Bottle

Capacity: 300-2000B/h

Competitive Advantage:

The main parts of the system are imported. The filling nozzle are imported from American famous brand;

Intelligent management

Electric part from Mitsubishi ,Schneider and so on

Pump: Nan Fang Pump

Motor: China famous motor

Pneumatic parts from AIRTAC Taiwan；

Stainless steel is food grade；

Automatic cap unscrambler

Hyford keeps 100% confident and try our best ability to satisfy customers\' requirements with their selected products. Additionally, Hyford owns a professional aftersale customer service team. Therefore, If you have any inquiries or questions, please visit our store, have a look other products and leave your message. Your message will be highly appreciated! Welcome to Hyford!
