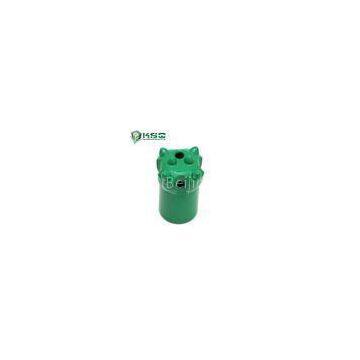

R32 2 inch / 2.5 inch Ballistic Button Drill Bit for Underground mining
Negotiable
/ Unit
1 Unit(Min.Order)
- 0 Unit / Units per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
R38 Spherical Carbide Tipped Drill Bits Rock Drilling Tools CNC Milling
-
high speed R38 Button Drill Bit high strength alloy steel Drilling Bit
-
T38 64mm 2.5\" Button Drill Bit long hole / bench drilling
-
Tungsten carbide Ballistic Button Drill Bit T38 76mm 89mm
-
T45 Spherical Button Drill Bit rock drill bits 70mm 76mm
-
CNC T45 mining Button Drill Bit for hard abrasive rock
Product Details
| Brand Name | MIROC | Place of Origin | China | |
| Model Number | 4148300506-607 |
Product Description
Description
This type of bit is a high speed drilling bit for soft to medium rock formations (between 50 Mpa to 150 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.
? Widely used drifting and tunneling
? Bit face design is ideal for soft to medium rock formations
Color: Green or Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: R32 Button Bit Ballistic Buttons
Applications
? Underground mining
? Tunneling
Competitive Advantage
? High grade tungsten carbide inserts
? Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
specification
1
<
| Part?Number | Bit?Diameter?(mm) | Bit?Diameter?(inch) |
Front?Buttons? (No.?x?mm) |
Gauge?Buttons? (No.?x?mm) |
| 4148300506 | 41 | 1?3/5 | 2x8 | 5x9 |
| 4148300507 | 43 | 1?2/3 | 2x9 | 5x9 |
| 4148300508 | 43 | 1?2/3 | 2x9 | 6x9 |
| 4148300509 | 43 | 1?2/3 | 3x8 | 6x8 |
| 4148300510 | 45 | 1?7/9 | 2x9 | 5x11 |
| 4148300511 | 45 | 1?7/9 | 2x9 | 6x9 |
| 4148300512 | 45 | 1?7/9 | 3x8 | 6x9 |
| 4148300513 | 48 | 1?8/9 | 2x9 | 5x11 |
| 4148300514 | 48 | 1?8/9 | 2x9 | 6x10 |
| 4148300515 | 48 | 1?8/9 | 3x8 | 6x10 |
| 4148300516 | 51 | 2???? | 2x10 | 6x10 |
| 4148300517 | 51 | 2???? | 3x9 | 6x10 |
| 4148300518 | 54 | 2?1/8 | 3x9 | 6x10 |
| 4148300519 | 57 | 2?1/4 | 3x9 | 6x11 |
| 4148300520 | 64 | 2?1/2 | 4x10 | 8x10 |
| 4148300607 | 57 | 2?1/4 | 3x10 | 6x11 |
2
<
| Product?Code?and?Brief?Description | Angle |
Front?Flushing? Holes |
Side?Flushing? Holes |
Weight? (kg) |
| B741-R32-B,?R32?Button?Bit,?Ballistic?Buttons | 40° | 1 | 1 | 0.7 |
| B743-R32-B,?R32?Button?Bit,?Ballistic?Buttons | 40° | 1 | 2 | 0.7 |
| B843-R32-B,?R32?Button?Bit,?Ballistic?Buttons | 40° | 2 | - | 0.7 |
| B943-R32-B,?R32?Button?Bit,?Ballistic?Buttons | 40° | 3 | 1 | 0.7 |
| B745-R32-B,?R32?Button?Bit,?Ballistic?Buttons | 30° | 1 | 2 | 0.8 |
| B845-R32-B,?R32?Button?Bit,?Ballistic?Buttons | 40° | 2 | 2 | 0.8 |
| B945-R32-B,?R32?Button?Bit,?Ballistic?Buttons | 40° | 3 | 1 | 0.8 |
| B748-R32-B,?R32?Button?Bit,?Ballistic?Buttons | 35° | 1 |
