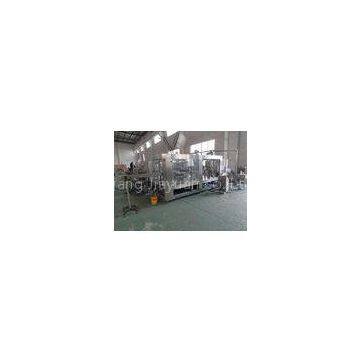

Auto Juice Filling Machine 6000BPH Ectric Cans Hot Filling Machine

Brand Name	Jiayuan		Place of Origin	China
Model Number	RCGF18-18-6

Delivery Time:30 days
Certification:CE,SGS

Auto Juice Filling Machine 6000BPH Ectric Cans Hot Filling Machine

Quick Detail:

Model: RCGF18-18-6 Full automatic, No bottle no filling, No cap machine stop. Capacity: 4000-6000BPH@0.5L bottle Seller: Jiayuan Designed applicable bottle: 0.2L-2L round PET bottle Application: Juice, energy drink, tea beverage etc. hot filling. Designed applicable cap: plastic screw cap. Easy operate for changing different bottle volume. Customizable CE & SGS Certificate 1 Year warranty Energy Drink Filling Machine

Automatic SS304/316 6000BPH RCGF18-18-6 Energy Drink Filling Machine RFC 3-in-1 Monoblock

Description:

This Energy Drink Filling Machine?adopts German technology, combined with years of experience in the Company after the development of new products.?RCGF series hot juice?filling machine is the standard 3-in-1 RFC (rinsing, filling, capping) monoblock. But for special production condition, another sanitizer rinsing could be added, that is 4-in-1 monoblock. The system has fully considered the beverage’s characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.

Main features:

1.?Bottles are delivered by suspension type clip bottle mouth conveying structure (except bottle out star wheel), bottle in adopts air conveying device, in the bottle washing station with flexible bottleneck clamp clamping, so that machine is more stable during operation , reliable, high-speed operation to adapt to the requirements of the machine.

2.?Dimidiate-type washing hand tongs, empty bottles with the guide rail automatically turn 180 o on to wash in and out of the bottles.

3. Energy Drink Filling Machine uses normal pressure filling technology is filling fast, reliable, non-drip, level accuracy. The machine has no bottle no filling characteristics.

4.?The Energy Drink Filling Machine uses magnetic torque cover, to achieve grasping cover, screw caps, screw cap stepless torque, constant torque of the screw cap, without damage cover, seal tight and reliable.

5.?Cap arranging device ensure the cover arrange speed, no damage to the cover surface. Comprehensive testing device can guarantee no bottle no cover, lack of cover down, full cover without cover conveying of functions.??

6. The whole Energy Drink Filling Machine adopts advanced man-machine interface operation, PLC control, variable frequency stepless speed regulation, such as automatic control technology, so that the whole of the high degree of automation, more reliable performance, production capacity can be adjusted continuously.

7.?The main electrical, pneumatic components are world famous brand.

Applications:

1. Juice filling with normal(20-30℃), middle(50-60℃) or high temperature(85-95℃)

2. Pure water/mineral water/portable water

3. Tea beverage

4. Energy drink

Specifications:

Model	RCGF18-18-6
Capacity:500ml	4000-6000b/h
Suitable Bottle:	Height: 150-310(mm) Diameter: φ50-φ92(mm)
Suitable Cap:	Plastic Screw Cap
Filling Pressure:	0.6Mpa
Power	7.08kw
Size	2680×1980×2280mm
Weight	3000kg

Competitive Advantage:

Full filling to avoid the liquid level from sinking after the bottle cooling down, and to decrease the dissolved oxygen to the utmost extent. The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP. Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted. Perfect filling temperature control system. Recirculation tank system has the function of supplying the material automatically. Sanitary filling head system is of umbrella structure, high filling speed. Perfect CIP system.
