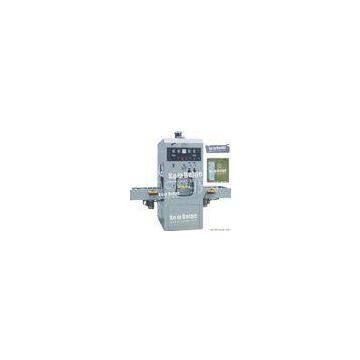

Digital 220V / 380V, 50 / 60Hz, 27.12MHZ High Frequency Welding And Cutting Machine
- T/T L/C D/P D/A
- 7 days
You May Like
-
High-sensitive control line 13.56Mhz / 3 phase high frequency welding and cutting machine
-
Custom design SILICON DIODE 220V /380V 13.56MHz high frequency welding and cutting machine
-
Professional SILICON DIODE 27.12MHz / 8000W High Frequency Welding and Cutting Machine
-
Reliable performance 220V / 60Hz / 27.12MHz Turn-table HF Welding and Cutting Machine
-
Automatic Slipway 27.12MHZ / 8000W / 60Hz High Frequency Welding and Cutting Machine
-
Automatic Hand Wheel Ultrasonic Plastic Welder / Spin Welding Machine for Filter Element
Product Details
| Brand Name | Ke-beige | Place of Origin | China | |
| Model Number | KBG-15KWR |
Product Description
Certification:CE
Digital 220V / 380V, 50 / 60Hz, 27.12MHZ High Frequency Welding And Cutting Machine
Application:
Widely using in Blister Packing , toothbrush packing, plastic box making, plastic products welding with APET, PETG, GAG EVA, PP etc. environmental protection materials, also suitable for the products which need to welding / sealing and cutting at the same time ( simultaneously).
High Frequency Welding and Cutting MachineFeatures:
■?? Automatic slipway, back-forth or continuous delivering the mould,
accurate orientation, error±20um.
■?? Adjustable cutting pressure 1-80 ton, stable and reliable in output, firm in structure.
■?? Adopting high sensitive anti-sparkle device to avoid damaging the mould efficiency.
■?? Operation mode: non-pneumatic or pure-pneumatic.
High Frequency Welding and Cutting MachineSpecifications:
|
MODEL???? |
KBG-5000WR |
KBG-8KWR |
KBG-15KWR |
KBG-25KWR |
|
POWER????????? |
5000W |
8000W |
15KW |
25KW |
|
POWRR SUPPLY????? |
220V/380V?? 50/60HZ |
|||
|
FREQUENCY???????? |
27.12MHZ |
13.56MHZ |
||
|
INPUT POWER????? |
8KVA |
15KVA |
25KVA |
35KVA |
|
RECTIFIER???? |
SILICON DIODE |
|||
|
VACUUM TUBE?? |
7T85RB |
7T69RB |
8T85RB |
8T25RB |
|
MAXPRESSURE???? |
5T/10T |
10T/15T |
20T |
30T |
|
MAX GAP OF ELECTRODES? |
200MM |
|||
|
SIZE OF ACTIVE HORN???? |
150MM |
|||
|
SIZE OF UP ELECTRODE?? |
300*400 |
350*500 |
600*800 |
700*800 |
|
SIZE OF DOWN ELECTRODE |
400*500 |
450*600 |
700*900 |
800*900 |
|
RANGEOF TEMPERATURE |
30~200℃ Adjustable |
|||
|
WELDING TIME? |
0~10S Adjustable |
|||
|
PRODUCTIVITY?????? |
≦5000times/8h |
|||
|
NET WELGHT?????? |
1T |
1.5T |
2.5T |
3T |
|
DIMENSION??????????? |
1920Х1200Х2060 |
1920Х1200Х12060 |
2650Х2550Х2240 |
2850Х2550Х2440 |
