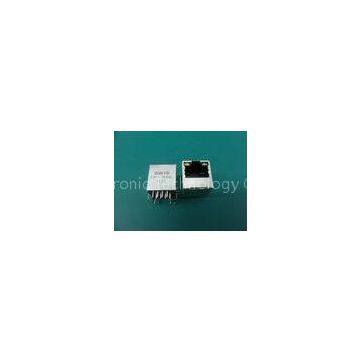

8P8C Top Entry Female RJ45 Jack 180 Degree Ethernet Coupler With LED 18.75mm

1.Number?of?positions:8 /Number?of?contacts?loaded:8

2. Type:?RJ45 Female connector

3.TAB direction: UP

4.Single Port: ,Usage:HY951180A/KRJ-181NL

5.Application: PCB

6.LEDS:YES

7.EMI?fingers:NO

8.Length: 18.75mm

?9.Gender: Female

Descriptions:

＊?10/100Base-Tx?RJ45?single?port?1X1?Vertical?with?LEDS?with?top?entry

＊?Number?of?positions:8

＊?Number?of?contacts?loaded:8

＊?Shieded:YES

＊?Rohs?compliant

＊?Length:18.75mm

＊?LEDS:YES

＊?Single?port?1X1?Tab-Up?180?degree?RJ45?with?internal?magnetics?????????????

＊?Internal?magnetics?are?100%?electrically?tested?for?HI-POT?and?functionality

＊?350uHminimum?OCL?with?8mA?bias?current

＊?High?performance?for?maximum?EMI?suppression

＊?Minimum?1500Vrms?isolation?per?IEEE?802.3?requirement

＊??ROHS-6?peak?wave?solder?temperature?rating?260℃

＊?Operating?temperarure?range?:0℃?to?+70℃

＊?Storage?temperature?range?:-40℃?to?+85℃

＊?EMI?finger:NO

＊?LEFT:Yellow,RIGHT:Green

＊?Usage:HY951180A/KRJ-181NL

Applications:

PC Boards,10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver, IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA, DSL／ADSL and so on
