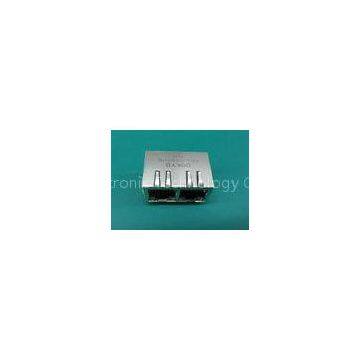

1000M 2 Port Rj45 With Internal Magnetics , Shielded Rj45 Connector
- T/T L/C D/P D/A
- 7 days
You May Like
-
2 Port PCB IP Phone RJ45 Connectors With Metal Shell 10 / 100 / 1000Base-T KRJ-201QWDENL
-
2 Port 1x2 Tab-Down 1000m Shielded Rj45 Plugs Magnetic Without LED
-
Vertical Tab-Down 2 Port Rj45 Ethernet For CAT5 , KRJ-210GYNL
-
Shieded 2 Port Rj45 Tab-Down , 90 Degree Rj-45 Side Entry With Led
-
UTP Cat 6 2 Port Shielded RJ45 Connector 10 Pin , 10 / 100 / 1000M Net Card RJ-45 Jacks
-
Vertical Ethernet 2 Port Rj45 Cat5e With Internal Magnetics , KRJ-201ANL
Product Details
| Brand Name | DGKYD | Place of Origin | China | |
| Model Number | KRJ-201QGYWEL |
Product Description
Certification:GP ROHS SGS ISO9001
1.Type:?2 port rj45
2.TAB direction: Down
3.Shieded:YES
4.LEDS:YES
5.EMI?finger:NO
6.Length: 21.3mm?
1000M?2?Port?Rj45?With?Internal?Magnetics?,?Shielded?Rj45?Connector
Descriptions:
＊?10/100/1000Base-Tx?RJ45?2?port?1X2?Vertical?with?LEDS?with side entry
＊?Double?port?1X2?Tab-Down?RJ45?with?internal?magnetics?????????????
＊?Internal?magnetics?are?100%?electrically?tested?for?HI-POT?and?functionality
＊?Suitable?for?CAT5&6?fast?Ethernet?Cable?or?better?UTP
＊?350uHminimum?OCL?with?8mA?bias?current
＊?High?performance?for?maximum?EMI?suppression
＊?Minimum?1500Vrms?isolation?per?IEEE?802.3?requirement
＊??ROHS-6?peak?wave?solder?temperature?rating?260℃
＊?Operating?temperarure?range?:0℃?to?+70℃
＊?Storage?temperature?range?:-40℃?to?+85℃
＊?Number?of?positions:10
＊?Number?of?contacts?loaded:8
＊?Shieded:YES
＊?Rohs?compliant
＊?Length:21.3mm
＊?LEDS:YES
＊?EMI?finger:NO
＊?LEFT?LED:Green,RIGHT?LED:Yellow
＊?Usage:KRJ-201QGYWENL
Electrical?Specifications:
|
Insertion? Loss dB?max |
Return?Loss?dB?min | Cross?Talk(dB?TYP) |
Common?Mode?Rejection? (dB??TYP) |
Hipot (vrms) |
OCL (uH?MIN) |
TR | ||||
| 1-100MHZ | 1-30MHZ | 30-60MHZ | 60-80MHZ | 1-30MHZ | 30-60MHZ | 60-80MHZ | 1-100MHZ | 1500 | 350 | TX:RX |
| -1 | -16 | -14 | -10 | -40 | -35 | -30 | -35 | ? | ? | 1:1 |
Material?specifications:
＊?Plastic?core:Glass?fiber?filler?PBT?Black(UL94V-0)
＊?Contact:gold?pin0.35mm?thick?phos?bronze?plated?nickel?then?with?6u’gold
＊?PCB?Terminal:Phosphor?bronze?,Tail-Tin?over?Nickl
＊?Housing:Phenolic,?PBT?Black?(UL94V-0)
＊?Metal?shell:Copper?Alloy?,Tin?and?Nickel?plated
