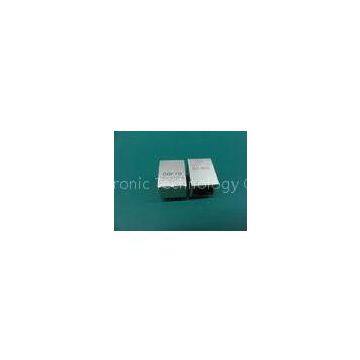

Single Port 1X1 Vertical Tx rj45 10 Pin Connector Tab-Down With LEDS
- T/T L/C D/P D/A
- 7 days
You May Like
-
Single Port 10 / 100 / 1000base 10 Pin RJ45 Connector With Integrated Magnetics
-
Silver W / O MODEM 10 Pin RJ45 Connector , Right Angle RJ-45 Single Port
-
Ethernet Cable Tab-down Female RJ45 Jack Receptacle Right Angle 1 x 1
-
J0011D01NL CAT5 Single Port Female RJ45 Jack Shielded Tab-down With Cross Pin
-
90 Degree LED RJ45 Female Connector Single Port With Internal Magnetics
-
8P8C Top Entry Female RJ45 Jack 180 Degree Ethernet Coupler With LED 18.75mm
Product Details
| Brand Name | DGKYD | Place of Origin | China | |
| Model Number | KRJ-320DNL |
Product Description
Certification:GP ROHS SGS ISO9001
1.Type: 10 pin rj45 connector
2.TAB direction: Down
3.Port:Single
4.Shieded:YES
5.LEDS:YES
6.EMI?finger:NO
7.Length: 21.3mm?
Single?Port?1X1?Vertical?Tx?rj45?10?Pin?Connector?Tab-Down?With?LEDS
Descriptions:
＊?10/100/1000Base-Tx?RJ45?single?port?1X1?Vertical?with?LEDS?
＊?Single?port?1X1?Tab-Down?RJ45?with?internal?magnetics?????????????
＊?Internal?magnetics?are?100%?electrically?tested?for?HI-POT?and?functionality
＊?Suitable?for?CAT5&6?fast?Ethernet?Cable?or?better?UTP
＊?350uHminimum?OCL?with?8mA?bias?current
＊?High?performance?for?maximum?EMI?suppression
＊?Minimum?1500Vrms?isolation?per?IEEE?802.3?requirement
＊??ROHS-6?peak?wave?solder?temperature?rating?260℃
＊?Operating?temperarure?range?:0℃?to?+70℃
＊?Storage?temperature?range?:-40℃?to?+85℃
＊?Number?of?positions:10
＊?Number?of?contacts?loaded:8
＊?Shield:YES
＊?Rohs?compliant(GP)
＊?Length:21.3mm
＊?LEDS:YES
＊?EMI?finger:NO
＊?LEFT?LED:Green,RIGHT?LED:Yellow
＊?Usage:HR911130A/KRJ-320DNL
Electrical?Specifications:
|
Insertion? Loss dB?max |
Return?Loss?dB?min | Cross?Talk(dB?TYP) |
Common?Mode?Rejection? (dB??TYP) |
Hipot (vrms) |
OCL (uH?MIN) |
TR | ||||
| 1-100MHZ | 1-30MHZ | 30-60MHZ | 60-80MHZ | 1-30MHZ | 30-60MHZ | 60-80MHZ | 1-100MHZ | 1500 | 350 | TX:RX |
| -1 | -16 | -14 | -10 | -40 | -35 | -30 | -35 | ? | ? | 1:1 |
Material?specifications:
＊?Plastic?core:Glass?fiber?filler?PBT?Black(UL94V-0)
＊?Contact:gold?pin0.35mm?thick?phos?bronze?plated?nickel?then?with?6u’gold
＊?PCB?Terminal:Phosphor?bronze?,Tail-Tin?over?Nickl
＊?Housing:Phenolic,?PBT?Black?(UL94V-0)
＊?Metal?shell:Copper?Alloy?,Tin?and?Nickel?plated
