annealing Small Ultra High Frequency Induction Heating Machine equipments 6KW

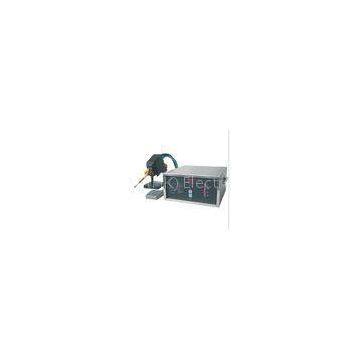

Small Size Ultrahigh Frequency Induction Heating Equipment 6KW

Quick Detail:

Specification

Major Features

GYH super frequency heating equipment has such features as high frequency (the minimum heated

welding diameter is φ0.1mm), small size, light weight, low failure rate and conservation of energy (it can save the power by 70% as compared with glass-ceramic vacuum tube high frequency heating equipments). Furthermore, it can ensure the solid welding point which is pleasing and delicate in appearance, integral geometric configuration, perfect surface grain, complete crystal structure of internal metal part, limited annealing range and elimination of obvious weld knot. It is widely applied to the welding of couplers and inserts used in metal glass manufacturing as well as electric appliance and electronic industries, non-contact welding of internal parts of small-size relays, high-pressure refrigerating parts, headwear decorations, metal ornamental articles and art wares.

Major Scope of Application

?Welding?of?big?and?small?gears?of?hard?alloy?saw?blade;?

?Welding?and?annealing?of?spectacle?frame?and?fittings

Welding?of?jewelries,?clock?and?watch;

Electric?industry?(tin?and?silver?soldering?of?fine?wire,?various?electronic?elements);

Electromechanical?industry?(silver?and?braze?welding?of?fine?metal?joints?as?well?as?quench

?tempering?for?mini?motor?shaft);?

Wire?material?industry?(annealing?of?wire?material?and?sheet?band);?

Welding?of?cutting?tools?as?well?as?tempering?for?paper?cutter?and?shoe?knife?blade;?

?Toy?industry?(tempering?for?wind?spring?and?thin?metal?sheet)

Operating Principle

Frequency conversion electromagnetic induction heating or induction heating for short is a method for heating metal materials by converting power frequency power supply into that of specific range based on the principle of electromagnetic induction. It is mainly applicable to the metal hot working, heat treatment, welding and melting. This type of heating technique is also applicable to packing industry (such as sealing of aluminum foil used in medicine and food industry), semiconductor material (such as extruded monocrystalline silicon and heated affixing metal parts for auto glass).?

Basic components of induction heating system include induction coil, AC power source and work pieces. Induction coil can be fabricated into different shapes as per different heated objects. The coil is connected with the power source providing alternating current for coil. The alternating current possessed by the coil can create a alternating magnetic field passing through the work pieces to produce eddy flow as required by heating.

Advantages of Induction Heating Equipment

1. Fast heating: the minimum rate of heating is less than 1 second (rate of heating is available for adjustment and control).

2. Wide coverage of heating: it can be used to heat various metal parts (replace removable induction coil as per different operating switches).

3. Easy installation: it can be used once it is connected with power source, in
