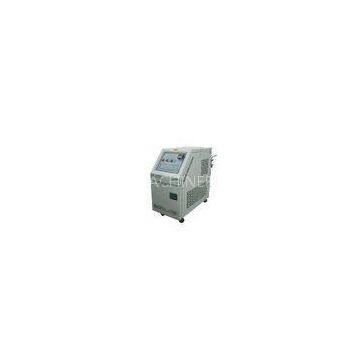

Plastic Injection Molding Water Temperature Control Unit , PID1 Accuracy

Brand Name	AODE		Place of Origin	China
Model Number	AWM-05

Delivery Time:Within 20days after receiving deposit
Certification:CE|ISO

Plastic Injection Molding Water Temperature Control Unit , PID±1℃ Accuracy

Quick Detail:

1. Temp. Control accuracy: PID±1℃

2. Range of temperature control:+15℃-120℃ for incoming water

3. Certification:CE & ISO

4. Controller:microcomputer

5. Heating capacity: 6KW

6. Maximum power consumption: 7KW

7. Alarm function:Excess temperature, open phase, oil starvation, overloading, reverse turn

Description:

Explosion-proof equipment(optional) Air blowing and return water function(optional) Thermometer for return water Automatic air-exhausting function after startup Switchover of heating power Instant cooling shut-down function(optional) RS485 communication function for automated management(optional) BY-PASS pressure release loop for hot water Customizable multi-point temperature control unit Customizable horsepower and heating power of water pump Brands OMRON, FUJI, TE, LG, MOELLER, ABB, and WEST for electric appliances Range of temperature control: +15℃-180℃ for incoming water Stainless steel integrated pipelines for less pipe resistance and rust Control mode: imported microcomputer or PLC(optional) Perfect safety protection, fault display, easy repair and maintenance even free of professionals

Specifications:

ITEM	UNIT	AWM-05
Temp control range	℃	Inlet water temperature +15℃-120℃
Temp control accuracy	℃	PID±1℃
Power supply		AC3∮380V 50HZ 3P+E(5M)
Heat transfer medium		Water
Cooling method		direct Cooling
Heating capacity	KW	6
Horsepower of pump	hp	1
Working flow of pump	L/min	33
Working pressure of pump	Kg/cm2	2.0
Max. power consumption	KW	7
Alarm function		Open phase/water depletion/excess temperature/overloading/reverse turn
Cooling water pipe	inch	1/2
Circulating water pipe	inch	3/8×2
Size(L×W×H)	mm	620×325×645
Weight	kg	62

Competitive Advantage:

1. Our core competitiveness:advance technology,the pioneer of TCU industry, Convenient and efficient nationwide service network

2. Customization thick copper pipe 1.0-1.2

3. Our core concept:Innovation, high-quality, integrity, service, focus

4. High density heat insulation cotton and aluminum foil

5. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST

6. The thickness of our machine rack is 1.2mm.

7. Strict quality control system

8. We have the production certification organic heat transfer material heater

Applications:

Injection industry

Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating Presses,Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting,plastic? Injection molding, li
