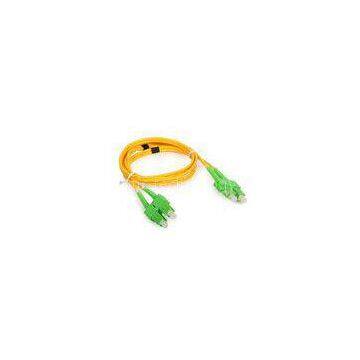

High precision SC / APC - SC / APC Singlemode Fiber Optic Patch Cord Dumplex

FOB Price

Negotiable / Kilogram

1 Kilogram(Min.Order)

Supply Ability 0 Kilogram / Kilograms per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ODM Or SINDA OEM		Place of Origin	China
Model Number	SC/APC-SC/APC DX Patch cord

Product Description

Delivery Time:3~5 days
Certification:ISO, ROHS

High precision SC / APC - SC / APC Singlemode Fiber Optic Patch Cord Dumplex

SC/APC-SC/APC Singlemode Fiber Optic Patch Cord Dumplex?

Quick Detail:

Connector Type:: SC/APC-SC/APC?

Cable Length: 1 Meter

Cable Dia: 3.0mm?

Polishing Type: APC?

Mode Type: Singlemode

Core Quantity: Dumplex,

Dimension: customized?

Cable Color: Yellow

Available type: FC SC ST LC MU MTRJ E2000 D4 ...

Description:

Fiber?optic patch cord?is one jof the most commom components connecting from the equipment to the fiber optic lind .It is mormally used between the optical line teminal with the optical cable terminal box with thick protection layer.

Using high precision ceramic ferrule

Rubbing exactitude and testing completelly

Low insertion loss and high return loss

High stability and repeat

Be according with the telcordia GR-326-CORE standard

Ferrule:excellent quality and high intensity zirconium dioxide ceramic ferrule

Applications: ?

CATV System Telecommunications

Optical Networks

FTTH (Fiber to the Home)

High speed transmission Systems

Testing instruments

Specifications :

Item	Mode Type	PC	SPC	UPC	APC
Insertion Loss	SM	≤0.25dB	≤0.20dB	≤0.20dB	≤0.20dB
MM	≤0.30dB	≤0.20dB	≤0.20dB	≤0.30dB
Return Loss	SM	≥45dB	≥50dB	≥55dB	≥65dB
MM	≥35dB	≥35dB	≥35dB	≥35dB
Repetition Test	Additional Loss≤0.1dB,Reture Loss Variability<5dB
Temperature Stability(-40°C~85°C)	Additional Loss≤0.2dB,Reture Loss Variability<5dB
Operating Temperature	-40°C~+75°C
Storage Temperature	-40°C~+85°C
-Option:CableDiameters;0.9,2mm,3mm&others
-Type:simplex,duplex,Matrial Type:pvc,hytrel,LSZH,OFNP,OFNR

Competitive advantages:

? Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.?

? All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we hav
