Home > Products > Fiber Optic Patch Cord > SC Fiber Optic Patch Cord , Waterproof Pigtail SM 9 125 optical fiber cable

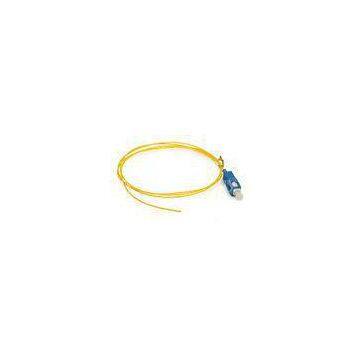

SC Fiber Optic Patch Cord , Waterproof Pigtail SM 9 125 optical fiber cable

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ODM Or SINDA OEM		Place of Origin	China
Model Number	SC Pigtails

Product Description

Delivery Time:3~5 days
Certification:ISO, ROHS

SC Fiber Optic Patch Cord , Waterproof Pigtail SM 9 125 optical fiber cable

?
Quick Detail :

Brand Name : SINDA

Model Number : SC

Core : Simplex to 288 cores

Jacket Material : PVC?/?LSZH/?PE

Fiber :?SM?(?G652D?,?G657A,G657B?)?,?MM?50/62.5/125?,OM3

Connector Type : SC/?FC?/ST?/LC/?MU/?MTRJ/?DIN/?E2000/?LX.5

Jacket Color : ?Yellow,?Orange,?Gray?,?Blue?,?Light?green

Packing : Standard?Zip?bag?+?sticker?or?wooden?rool

Description :

Fiber?optic?patch?cords?suited?for?equipment?jumper?cable,?cross?connects,?and?work?area?connections.?

All?patch?cords?are?manufactured?using?OFNR?riser?grade?cable?and?are?100%?factory?tested?to?ensure?

performance?to?TIA/EIA-568-

B3?standards.?ST/ST,?SC/SC?and?hybrid?ST/SC?Patch?Cords?are?available?in?both?multimode?

(62.5/125μm?and?50/125μm)?and?single?mode?cable-types,?in?duplex?and?simplex?versions.

Applications:?

CATV System Telecommunications

Optical Networks

FTTH (Fiber to the Home)

High speed transmission Systems

Testing instruments

Specifications :

Item	Mode Type	PC	SPC	UPC	APC
Insertion Loss	SM	≤0.25dB	≤0.20dB	≤0.20dB	≤0.20dB
MM	≤0.30dB	≤0.20dB	≤0.20dB	≤0.30dB
Return Loss	SM	≥45dB	≥50dB	≥55dB	≥65dB
MM	≥35dB	≥35dB	≥35dB	≥35dB
Repetition Test	Additional Loss≤0.1dB,Reture Loss Variability<5dB
Temperature Stability(-40°C~85°C)	Additional Loss≤0.2dB,Reture Loss Variability<5dB
Operating Temperature	-40°C~+75°C
Storage Temperature	-40°C~+85°C
-Option:CableDiameters;0.9,2mm,3mm&others
Type:simplex,duplex,Matrial Type:pvc,hytrel,LSZH,OFNP,OFNR

Competitive advantages:

Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.?

? All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and
