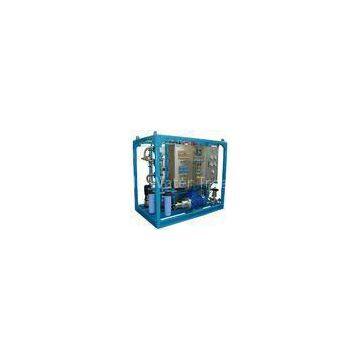

RO Purification Marine Water Maker Machine Commercial For Submarines , BW-1.5K-140

RO Purification Marine Water Maker Machine Commercial For Submarines , BW-1.5K-140

Quick?Detail:

Good?design

High?quality

Reasonable?price

Short?delivery

Our commercial reverse osmosis systems are manufactured to meet important matters such as robust construction, user friendly, environmental friendly and long term reliability.

It may come standard with media pre-filters, anti-scalant and chemical dosing systems. These equipment are made suitable for each customer and water application needs.

Reverse osmosis systems are tasked with purifying water from brackish and sea water. These equipment consist of a high pressure pump that pressurizes brackish or sea water against the surface of a very fine membrane containing small pores. Only water can pass through the small pores in the membrane while rejecting organics such as salt, particles, minerals, and other disassociated species from flowing through. These small pores also have the power of blocking bacteria and disease-causing pathogens. At the end we are left with the emergence of clean, fresh water on the lower-pressured side while salts, minerals, and other disassociated species are discharged into the brine stream then into a drain on the concentrate side.

This series comes with many of the same standard features, including multimedia and activated carbon pre-filters, water softeners with brine tank, and UV sterilizers. These too can be customized based on individual design to include chemical dosing, cleaning skids, antiscalant and more. These commercial reverse osmosis systems can accommodate between 1,500 to 32,000 GPD, with feed water TDS of 1000 ppm to 5000 ppm. These features have the capability of removing hardness, chlorine, odors, color, iron, and sulfur. Economical and efficient, this commercial reverse osmosis systems acquire the latest in RO technology to remove dissolved salts, particles, organics, minerals, solids and other contaminants from water. JCD WATER uses the most reputable membrane manufacturers such as Dow Filmtec and Hydranautics.

Standard Features:Powder coated carbon steel frame

8\" TFC spiral wound membranes

Stainless steel multi-stage pump with TEFC motor

FRP membrane housing

?5?micron?cartridge?pre-filter

?460V/3Ph/60Hz?power?supply

?Microprocessor?based?control?panel

?Programmable?time?delay?and?set?points

?Status?indicators

?Motor?starter

?NEMA?12?enclosure

?Low?pressure?switch

?High?pressure?switch

?Liquid?filled?pressure?gauges

?Permeate?conductivity?monitor

?Permeate?&?concentrate?flow?meters

?Available?Options:Feed?water?conductivity?monitor

?Membrane?cleaning?skid

?Automatic?hourly?flush

?Feed/Permeate?blending

?Export?crating

?380-415V/3Ph/50Hz?power?supply

?220V/3Ph/60Hz?power?supply

?Product?tank?level?controller?switch

?Feed?pH?controller?with?sensor

?Feed?ORP?controller?with?sensor

?Water?and?hour?meters

?Chemical?dosing?systems

?Media?and?Iron?prefiltration?systems

?Ozonation?and?UV?sterilization?systems

?Water?softeners

?Post?deionization?polishers

?Pre?piped?skid?system

Applications:

for Commercial Reverse Osmosis SystemsThe ideal applications for commercial reverse osmosis systems

Include:

?Boiler?Feed?Water

?Power?Plants

?Cooling?Towers

?Ion?Exchange?Pre-treatment

?EDI?Pre-treatment

?Beverage?Production?and?Bottled?Water

?Safe?Drinking?Water

?Spot?Free?Product?Rinse

?Ice?Manufacturing

?Plating?Operations

?Laboratory

?Metal?Finishing

?Food?and?Beverage

?Electronics

?Rinse?Water

?Pharmaceutical

?Chemical?Blending

?Mining?Industry

Specifications:
