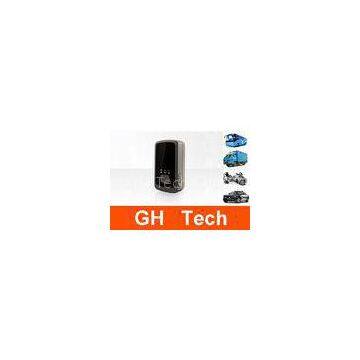

Asset tracker Car GPS /GNSS SYSTEM Tracker G-T300 for lone worker, vehicle, pet and asset tracking a

Frequency?

Quad band: 850/900/1800/1900 MHz

Compliant to GSM phase 2/2+

-Class 4 (2W @ 850/900 MHz)

-Class 1 (1W @ 1800/1900 MHz)

GPRS

GPRS multi-slot class 12

GPRS mobile station class B

RMS Phase Error

5 deg

Max Out RF Power

GSM850/GSM900: 33.0±2 dBm

DCS/PCS: 30.0±2 dBm

Dynamic Input Range

-15 ~ -108 dBm

Receiver?Sensitivity

Class Ⅱ RBER 2% (-107 dBm)

Stability of Frequency

< 2.5 ppm

Max Frequency Error

±0.1?ppm

GNSS Receiver Type

72-channel u-blox M8 engine

Sensitivity

Autonomous: -147 dBm

Hot start: -155 dBm

Tracking & navigation: -162 dBm

Reacquisition: -160 dBm

Position Accuracy

Autonomous: 2.5m CEP

SBAS: 2.0m CEP

TTFF (Open Sky)

Cold start: 30s average

Warm start: 28s average

Hot start: 1s average

Digital Inputs

Two digital inputs

One positive trigger for ignition detection

One negative trigger input for normal use

Power Button

Power on and power off, can be disabled by the air interface protocol

Function Button with Vibration Feedback

Emergency alert or instant geo-fence

GSM/GNSS Antennas

Internal only

Indicator LED

GSM, GPS and battery status

Mini USB Interface

For external power and configuration

Dimensions

68.5mm * 38.5mm * 23.5mm

Weight

60g

Battery

Li-Polymer 1300 mAh,?3.7V

Standby Time

Without reporting :?400 Hours

5 minutes reporting :?140 Hours?

10 minutes reporting?: 180 Hours

Water Resistance

IPX5 compliant

Charging Voltage

5V DC

External Battery Voltage

3.5V to 4.5V DC

Operating Temperature

-20℃?~ +55℃

Transmit Protocol

TCP, UDP, SMS

Scheduled Report

Report position and status according to preset time schedules

Geo-fence ?

Support up to 5 internal geo-fenc
