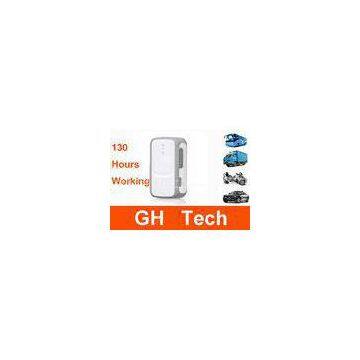

U-blox Chip 130 Hours Continous Working 5 Minute Interval Car Gps Tracker System Asset Tracker Truck

Frequency

Quad band: 850/900/1800/1900 MHz

Compliant to GSM phase 2/2+

-Class 4 (2W @ 850/900 MHz)

-Class 1 (1W @ 1800/1900 MHz)

GPRS

GPRS multi-slot class 12
GPRS mobile station class B

RMS Phase Error

5?deg

Max Out RF Power

GSM850/GSM900: 33.0±2 dBm

DCS/PCS: 30.0±2 dBm

Dynamic Input Range

-15 ~ -108 dBm

Receiver Sensitivity

Class Ⅱ RBER 2% (-107 dBm)

Stability Of Frequency

< 2.5?ppm

Max Frequency Error

±0.1 ppm

GPS Chipset

u-blox All-In-One GPS receiver

Sensitivity

Autonomous: -148 dBm

Hot start: -160 dBm

Tracking: -162 dBm

Position Accuracy

Autonomous: < 2.5m

SBAS: 2.0m

TTFF (Open Sky)

Cold start: 30s average

Warm start: < 30s

Hot start: < 1s

Digital Inputs

Two digital inputs

One positive trigger for ignition detection

One negative trigger input for normal use

Digital Output

One digital output, open drain, 150 mA max current drain

Power Button

For power on and power off, can be disabled by OTA using @Track protocol

Function Button

Emergency alert or instant geo-fence

Mini USB Interface

For external power and configuration

MMCX? RF Connector

For external GPS antenna

Indicator LED

GSM, GPS and battery status

Dimensions

67.5mm*40mm*21mm

Weight

60g

Internal Battery

Li-Polymer 1300 mAh

Standby Time

Without reporting: 400 hours

5 minutes reporting: 130 hours

10 minutes reporting: 150 hours

Water Resistance

IPX5 compliant

Charging Voltage

5V DC

External? Battery Voltage

3.5V to 4.5V DC

Operating?Temperature

-20℃?~ +55℃

Transmit Protocol

TCP, UDP, SMS

Scheduled Timing Report

Report position and status according to preset time schedules

Geo-fence

Support up to 5 internal geo-fence regions

Low Power Alarm

Alarm when internal battery is low

Power On Report

Report when the device is powered on

Power Off Report

Report when the device is powered off

Motion Detection

Motion alarm based on internal 3-axis accelerometer

SOS/Emergency Alarm

SOS alarm when function key is long pressed
