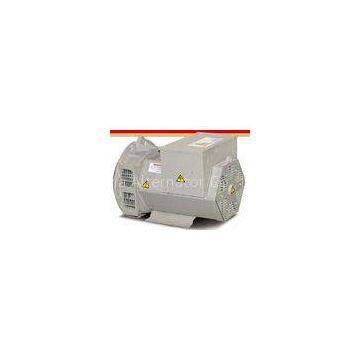

2 / 3 Pitch Single Phase Diesel Generator With AVR 1500RPM 23kw / 23kva

2 / 3 Pitch Single Phase Diesel Generator With AVR 1500RPM 23kw / 23kva

Quick Detail:

?
Specifications

?
Description:
1) Any permanent magnetic generators, providing invariable excitation on all occasions.
2) Easy to be connected with power network or other generators. Standard 2/3 pitch windings check excessive midline? current.
3) Balanced rotor with single or two sealed ball bearings
4) Convenient installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
5) Wide range of Flange adaptor and single bearing coupling disc Meet leading standards

ELECTRIC FEATURES

INSULATION

Insulation Class H

All regulatory components are made up with special materials and are immersed in lacquer by peculiar tech. Vanish and colophony materials are develop to strengthen the processing and machinery intensity of windings and revolving parts for protecting the alternator work under corrosive environment.

Winding and electric features:

2/3 pith winding design can effectively eliminate the third harmonic wave(3th.9th,15th) of the voltage ,which is the best design of UPS for nonlinear load .Connected with the network in parallel, the structure can restrain excessive currents in the midline

A continuous damp windings abates surges. The poles and gears of the windings are carefully chosen, this and the 2/3 pitch help to check the wave distortion and output voltage.

Phone interference

THF(defined by 40thpart of BS4999) <2%.TIF(defined by ASAC50.12)<50

Radio interference

Brushless apparatus and quality AVR ensure little radio interference in transmission. RFI noise filter is also available.

Quality Assurance

Factory Inspection, the test items before delivery are mainly as follows:

1. Each genset shall be put into commission more than 4 hours totally.

They are tested on idle load, fully load and 10% overload

2. The noise level is tested

3. All of the meters on the control panel shall be tested

4. The appearance of the genset and all of the label and nameplate shall be checked

FAQ:

? 1. Q:When was your company established?

?????? A:in 2005

?? 2. What is your main products?

?????? A: Alternator, diesel generator, Motor.

?? 3. What certificate you get?

?????? A: We pass ISO9001-2008 and approved by CE,SASO.

???4. Q:?What?is?your?MOQ?of?this?item?

???????A:?1-10PCS

??5. Q:?What?is?the?deliverytime?

???????A:?15-20?days?after?receiving?your??TT deposit.

??6. Q:?Is?it?all?right?to?make?customer\'s?own?brand?nam
