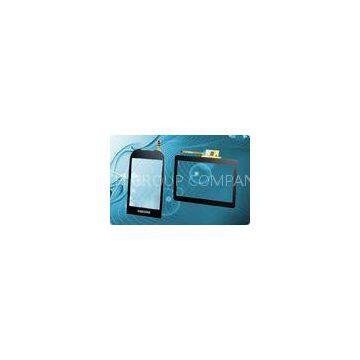

3.3V adjustable and 3.5 Inch Projected Capacitive Touch Panel with I2C Interface

№

Item

Specification (Some index value will be adjusted according to customizated

requirements)

1

Item NO.

DPT-PCT-0350XX

2

Detection method

Projected Capacitive

3

Size

3.5\"

4

Outline dimension(mm)

55.8*101.13mm(adjustable if need)

5

View area(mm)

50.56*81.46mm( adjustable if need)

6

Active area(mm)

49.96*74.44 mm( adjustable if need)

7

Aspect ratio

16:9 or 4:3

8

Resolution

1024*1024

9

Input method

Finger

10

Touch action force

30~60g

11

Operating Voltage

3.3V adjustable

12

Operating current

2.5~10mA Depends on IC

13

Operating temperature

-10°C~60°C

14

Storage temperature

-15°C~40°C ,＜90%RH；40°C~70°C,＜60%RH

15

Humidity

10%~90%RH at 40°C, non-condensing

16

Relative humidity

10%~90%RH at 40°C, non-condensing

17

Response time

<10ms

18

Transparency

≥82% depends on the quantity of layers

19

Surface hardness

≥5H

20

Material structure

Glass+ Film or Glass+ Glass

21

Thickness

1.6mm adjustable Glass(1.1mm) +Top ITO Film(0.125mm) +Bottom ITO Film

(0.125mm)

22

Light transmission

92%~100%

23

Durability

Scratch-free; More than 50,000,000 touches in one location without failure

24

Drivers available

Windows 2000,Windows XP,Windows NT,Linux,Mac

25

Certificates

CE, FCC, RoHS

26

Working environment
