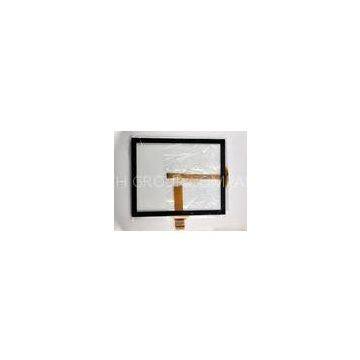

18.5 Inch Standard Projected Capacitive Touch Panel with USB Interface, DPT-PCT-S18508V1

№

Item

Specification?

Standard?projected?capacitive?touch?panel??with?controller??(interface:USB)

1

Item?NO.

DPT-PCT-S18508V1

2

Detection?method

Projected?Capacitive

3

Size

18.5\"?wide

4

working?area

305.1*229.1?MM

5

Outline?dimension

410.8(W)*231.4(L)

6

Resolution

25ppi(min)

7

Input?method

Finger

8

Touch?action?force

30~60g

9

Operating?Voltage

5V?adjustable

10

Operating?current

2.5~10mA?Depends?on?IC

11

Operating?temperature

-10°C~60°C

12

Storage?temperature

-15°C~65°C?,＜90%RH；40°C~70°C,＜60%RH

13

Humidity

10%~90%RH?at?40°C,?non-condensing

14

Relative?humidity

10%~90%RH?at?40°C,?non-condensing

15

Response?time

<35ms

16

Transparency

≥82%?depends?on?the?quantity?of?layers

17

Surface?hardness

≥7H

18

Material?structure

Glass?to?Glass

19

Thickness

2.4±0.15mm

20

Light?transmission

92%~100%

21

Durability

Scratch-free;?More?than?50,000,000?touches?in?one?location?without?failure

22

Drivers?available

Windows?2000,Windows?XP,Windows?NT,Linux,Mac

23

Certificates

CE,?FCC,?RoHS

24

Working?environment

Under?sunlight,indoor?and?outdoor

25

Finger?Touch?life

≥35,000,000?times

26

Warranty

1?year
