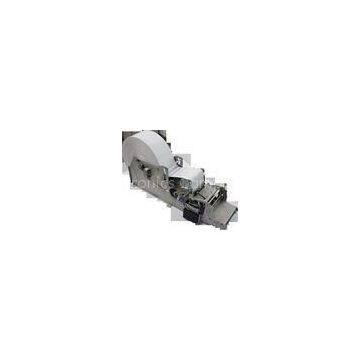

ESC / POS Automatic Dot-line Kiosk Thermal Printer wtih GDI Printing ZTP80-H60

Items

Specifications

Printing method

Thermal dot-line printing

Number of dots

576 dots/line

Resolution

8 dots /mm

Paper width

80mm

Print width

72mm

Paper loading

Automatic

Printing speed

High speed 150mm/s, Medium-speed ?120mm/s, Low speed 80mm/s

Paper roll max(mm)

150 ?

Paper thickness

60-150μm

Printing life

100Km

Cutter life

1 million cuts

Dimensions?

Paper roll diameter 150mm:212.3mm×112.0mm×120.3mm

Paper roll diameter 120mm :197.3mm×112.0mm×120.3mm

Cut mode

Full/ Half cut

Character

FONT A:12×24???? FONT B:9×17

Character (H×W)

12×24 (1.5×3.0mm)??? 9×17 (1.125×2.125mm)

Interfaces

Serial RS232,USB2.0

Power supply

24V±10% -2A

Environment

Operating temperature :0°C? -55°C

Operating humidity :10 -80 % RH (no precipitation)

Storage temperature:-25°C? -70°C ?C(no paper)

Storage humidity :10 -90 % RH(no precipitation )

Sensors

Near End Of Paper /Paper end/ Head open / black?mark?sensor /Paper jam( optional)

Barcodes

EAN8,EAN13,CODE93,CODE128

Weight

1.03kg

Drivers

Windows
