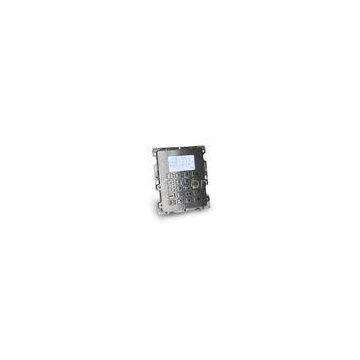

ZT595 Unattended Payment Terminal - PCI EPP with 64 MB Flash for ATM , Self-Service Payment Terminal

ZT595 Unattended Payment Terminal - PCI EPP with 64 MB Flash for ATM , Self-Service Payment Terminal

Features

■ High quality stainless steel and polymer keypad

■ High performance ARM9 processor, 64 MB RAM expandable, 64 MB Flash,???? ??????

? expendable

■ PCI PED approved

■ Linux operating system installed

■ Customized layouts

■ Water-proof, dust-free, vandalism-proof, prevent from tamper drilling, penetration, dismantling, audio monitoring and replacement

■ Encrypted keys and other sensitive data are self destruction when tamper attack.

■ Support DES, Triple DES algorithm and 2048 bit RSA algorithm

■ Support external card reader for Magnetic card payment, IC card payment, and cash? payment with EMV L1/ L2 compatible.

■ Provide Ethernet interface, USB, RS-232interface and some industrial interfaces such?as GPIO and RS485

■ Build-in SAM support

■ Connectors for function keys and beeper

■ Optional GSM/ GPRS/ CDMA/ Modem

Applications

■ Financial equipments: ATM, ADM, CDM,self-service Payment Terminal

■ Public equipments: ticket vending machine, automatic vending machine, self-service? petrol Terminal

Performance Standards:

■ ISO13491, ISO9564, IBM3624, ANSI X9.8, ANSI X9.9, ANSI X9.19

Approvals

■?? PCI Certification?

■?? EMV L1/ L2 ?

Capabilities

■ Input keypad: 10 numeric keys, 6 function keys (Customized)

■ Key lifespan: ≧2,000,000 times

■ Encryption process: PIN encryption, MAC algorithm, data encryption and decryption,? remote key download

■ Sensitive data can be securely kept for more than five years with power off.

Environment Adaptability

■ Protection level: IP65(key surface)

■ Operating temperature: -20°C ～ +60°C? relative humidity: 30%～90% RH?

Optional heating film for lower temperature

■ Storage temperature: -30℃～+65℃??? relative humidity: 20%～90% RH

■ Atmospheric pressure: 60～106Kpa

Weight≈ 1.2kg

H/W-Cxx

F/W-Cyy
