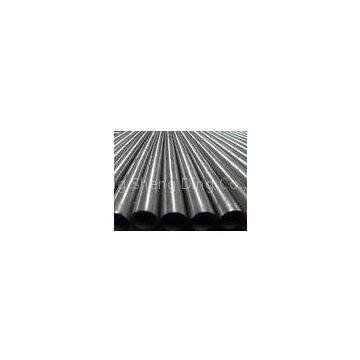

Carbon Precision Steel Tube SAE1020 BS6323/4 For Hydraulic System

Brand Name	SHENGDINGYUAN		Place of Origin	China

Delivery Time:30 DAYS
Certification:ISO 9000 TS 16949

Carbon Precision Steel Tube SAE1020 BS6323/4 For Hydraulic System

Description:

Standard:DIN2391/C/EN10305-4 /SAEJ524/BS6323/4 Material:ST35,ST37.4,ST37,ST45,ST52,ST52.4,E235,E255,E355,SAE1010,SAE1020 Delivery State:NBK/GBK. Raw material:Bao Steel,Huai Steel,XingCheng Steel with good quality. Length:5.8m,6m. Package:Bundles or wooden cases. Surface Anti-rust:Both outside and internal tube surface flushing with anti-rust oil. Surface quality:very smooth and bright without oxide scale,pock,strach,crack and other defects.. Surface Cleaness:clean without iron scrap,dust,better for hydraulic system life. High working pressure,better extending rate and strength property,after bending with no deformation,after flattening and flaring process with no crack. Raw material:?Precision tubes are made from carbon steel from quality Bao Steel,XingCheng Steel,and HuaiSteel.

Tolerance table for carbon precision steel tubes?

AME	SCOPE(mm)	GB (mm)	DIN (mm)	Enterprise control(mm)	Special high-precision(mm)
Out Diameter	4-30	±0.1	±0.08	±0.05	±0.03
31-40	±0.15	±0.15	±0.05	±0.03
41-50	±0.20	±0.20	±0.08	±0.03
51-60	±0.25	±0.25	±0.08	±0.03
Wall thickness?	0.5-7	±10%,Min±0.12	±10%	±10%,Min±0.05	±10%,Min±0.03

Steel grades for carbon Precision steel tube

Standard	Material
EN10305-1	E215, E235, E255, E355,C45E, 30GrMo
DIN2391	ST35, ST45, ST52, ST37.4
BS6323/4	CFS3,CFS4,CFS5,CFS8
ASTMA519	SAE1010,SAE1020,SAE1045
JISG3445	STKM11A,STKM13A
SAEJ524	SAE1010

Manufacturing Process:

Synopsis of Process Routing: Quality Carbon steel — Cold Drawn — Heat Treatment Without Oxidization (NBK Status) — Nondestructive Testing— Flushing The Internal Hole With Special Equipment Under The High Pressure —Dealing With Antirust Oil On Surface — Plastic Capping On Both Ends. Inner and Outer Surface Cleaning: We adopt automatic inner surface cleaning machine, rotating brush cleaning and high pressure oil flushing to clean the inner and outer surface.The new steel tube production craftsmanship can effectively remove all particulate attached to the inner and outer surface of tubes and thus achieving the utmost surface cleaness and polishness. Finished tube anti-rust oil plating: We adopt high pressure spray plating method, the antirust oil is plated by high pressure jet after ten passes of filtering and one pass of precipitation to safeguard the tubes’ outer and inner surface cleaness and polishness.

Testing of precision tubes for carbon Precision steel tube

chemical analysis, tensile test, water pressure test,?flattening test or drift expanding test,dimensional inspection and visual inspection.

Applications:

Precision tubes are used in hydraulic system,automobile,mechanical parts and in the occasion where the high precision,brightness,cleanness and mecha
