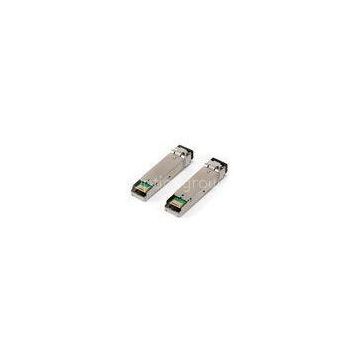

850nm SFP Optical Transceiver Module
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Neuter, OEM | Place of Origin | China | |
| Model Number | SFP-GIG-SX-A |
Product Description
Certification:CE/FCC/RoHS/TUV/UL
850nm Multimode SFP Alcatel Optical Transceiver Module 1000BASE-SX SFP-GIG-SX
?
Specifications:
|
P/N |
SFP-GIG-SX-A |
|
Datarate |
1.25Gb/s |
|
Wavelength |
850nm |
|
Distance |
300M |
|
Transmitter |
VCSEL |
|
Receiver |
PIN |
|
Media |
MMF |
|
DDM/DOM |
YES |
|
Connector |
LC |
|
Application |
Gigabit Ethernet |
|
Operating Temperature |
0℃~ +70℃ |
|
Voltage Supply |
3.3V |
|
Certification |
CE/FCC/RoHS/TUV/UL |
|
Brand |
Neuter, OEM |
1000BASE-SX ?Multimode SFP 850nm Multimode up to 300m
The AscentOptics Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of switches and routers, can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.
Applications
Gigabit Ethernet/Fast Ethenet Fiber Channel SDH/SONET/ATM Switch to Switch interface Router/Server interface Other optical transmission systems
Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM? Customized label?
5. Keep stock,Fast delivery
