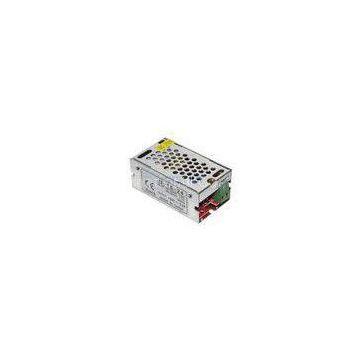

AC - DC Enclosed Built-in EMI filter Regulated 12V LED Light Power Supply Transformer 15W EN55022

Product Electric Parameters

Input specification

Input voltage

AC90V---264V

Input frequency

47-63Hz

Input surge

20A@120VAC 40A@230VAC

Output specification

Output voltage can be adjusted

±10%

Start-up time

≦1S(input230V,Io=100%)

keep time

≧20mS (input230V,Io=100%)

Voltage regulation

(Full load) ≦0.5%

Protection function

Overload protection

105% - 150% rated power, automatic recovery

Over-voltage protection

105%---150%
105% - 150% of the rated voltage

Insulation intensity

Input---output

1500VAC/1min

Input---ground

1500VAC/1min

Input---ground

500VAC/1min

Safety standards

According with GB4943, UL60950-1, EN60950-1 standards.

E M C standards

According with GB9254, EN55022 class A EN61347-2-13:2008 standards

Environmental

working temperature

- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)

Storage temperature

- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)

height above sea level

≦2000M

Structure

Size (mm)

70(L)*39(W)*31(H)

Cooling method

Cooling method

Natural cooling air convection

Weight

0.1KG/PCS

Product Type Table

Product model

output specification

ripple, noise

efficiency

SP10-5

5V

2A

50mV

76%

SP15-9

9V

1.5A

70mV

78%

SP15-12

12V

1.1A

100mV
