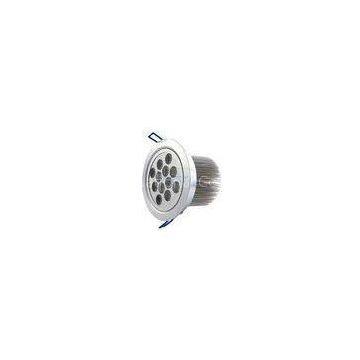

24W, 12pcs 2W Cree LED Recessed Downlights, Dimmable LED Down Light Lighting
- T/T L/C D/P D/A
- 7 days
You May Like
-
Energy Saving 12W 230V Recessed LED Downlight Commercial Lighting For Fashion Store, Hotels
-
Warm White 18W 1040lm LED Downlight, Indoor Led Recessed Ceiling Lights Fixture
-
High Brightness Recessed LED Downlight, Led Ceiling Downlights 9W Jewelry Lighting 132 x H71mm
-
14W Recessed LED Downlight, 7pcs 2W Cree LED Ceiling Lights, Replacement 100W
-
Led House Lights, 7 Watt Recessed LED Downlight Indoor Lighting For Home, Office, Hotel
-
High Power 10W Recessed LED Downlight 30 45 60 90 Beam Angle Equiv To 80W Halogen Lamp
Product Details
| Brand Name | Unistar | Place of Origin | China | |
| Model Number | US-DL-R12X2W |
Product Description
Certification:CE RoHS TUV UL
24W, 12pcs 2W Cree LED Recessed Downlights, Dimmable LED Down Light Lighting
Dimmable LED down light, 24W, 12pcs 2W Cree LED, Meanwell power supply, Factory hot sales
Description:
Cree/Edison/Epistar LED AC85~265V input options 24W power consumption (Cut-out) Installation Hole size Φ114mm Warm white Pure white Cool white Luminous Efficiency 80-110Lm/W 30o 45o 60o 90°beam angle Use 6063 air-craft aluminum Equiv to 200W halogen lamp Up to 70% energy savings 3 Year Warranty CE RoHS TUV UL compliantSpecifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
|
Tech Date |
||
|
Model |
US-DL-R12X2W |
|
|
LED Qty |
12pcs 2W high power LED |
|
|
LED Type |
Cree Edison Epistar |
|
|
LED Power |
24W |
|
|
LED Color |
Warm white, Pure white, Cool white |
|
|
Input Voltage |
AC85~265V |
|
|
Frequency Range |
50Hz – 60Hz |
|
|
Power Factor |
>98 |
|
|
Power Efficiency |
>85% |
|
|
Luminous Efficiency |
80~110LM/W |
|
|
Dimension |
Φ132 x H121mm |
|
|
Color Temperature |
WW |
2700-3500K |
|
PW |
4000-5500K |
|
|
CW |
6000-7000K |
|
|
CRI |
WW |
Ra>73 |
|
PW / CW |
Ra>78 |
|
|
Lumens Output |
WW |
1650lm |
|
PW |
1750lm |
|
|
CW |
1830lm |
|
|
Beam Angle |
30° 45° 60° 90° |
|
|
(Cut-out)Hole size |
Φ114mm |
|
|
Working Temperature |
-40℃ ～ +55℃ |
|
|
Storage Temperature |
-25℃ ～ +65℃(25℃ best) |
|
|
Life span |
35000~50000hrs |
|
|
Certification |
CE, RoHS, FCC |
Curve of light distribution & Lux distance(Ta=25℃±3℃)
Comparison of color temperature:
Diagram of degradation for Luminous:
Comparison of Lifetime:
|
Halogen Downlight |
6000,hours lifetime |
Increase the |
|
|
LED Downlight |
50000,hours lifetime |
long time with |
LED Downlights dimension (unit: mm)
Installation Instruction:
Package:
Application:
1) Recessed lighting, shelf lighting, ceiling/wall coves
2) Cabinet and under counter lighting, office work station
3) Back lighting, step lighting, light boxes
4) Merchan
