45kN 4.5T Overhead Line Stringing Equipment Pull Tension for Power Transmission System

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Boyu		Place of Origin	China
Model Number	TY45TP

Product Description

Delivery Time:25-35 days
Certification:ISO9001

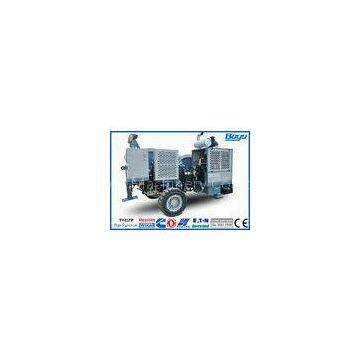

Max 45kN 4.5T Overhead Line Stringing Equipment Pull Tension Dual Models Machine TY45TP

Quick details: Overhead Line Stringing Equipment Hydraulic Puller Tensioner Dual Purpose Machine Max Conductor diameter: 34mm Max rope diameter: 16mm Max pull: 45kN 4.5Tons Diesel: Cummins 63kw(85hp) Main pump and motor: German Rexroth Speed Reducer: German Rexroth Bull-wheel diameter: 1500mm

Description
The machine is suitable to string one or?two ropes or bundled conductors. The bull-wheel grooves are made of high resistance interchangeable nylon sectors. The machine is completely electronically controlled.

Performance
Max pull Max pull: 45kN Speed at max pull: 2.7km/h Max speed: 5km/h Pull at max speed: 25kN

? Max tension

Max tension: 45kN Max speed: 5km/h

Engine Diesel 63kw(85hp) Cooling system water Electrical system 24V

Characteristics Bull-wheel diameter: 1500mm Max rope diameter : 16mm Max conductor diameter: 34mm Total weight: 3000kg? Overall dimension (length*width*height): 4000×2000×2300mm

Main configuration Engine: Cummins Main pump: German Rexroth Main motor speed reducer: German Rexroth Hydraulic meter: German WIKA

Configuration Negative self-acting hydraulic brakes Hydraulic dynamometers with set-point and automatic control of maximum pull Hydraulic oil cooling system Digital meter counters Control instruments for hydraulic system and diesel engine Rigid axles for towing at max speed of 30km/h with mechanical parking brake Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders with independent controls Hydraulic front stabilizer Grounding connection point

Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with 2 pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to \"0\") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Additional Devices Lighting system for the trailer Hydraulic brake system for the trailer 2 hydraulic conductor clamps for drum change operations Electronic pull and speed recorder

Company Introduction
Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:

Overhead transmission?line stringing equipment and accessories and tools. Nonmetallic galvanized the production equipment (Achieved high-tech products) Numerical control machine Low voltage no power-arc furnace compensation system

Work site

Max 45kN 4.5T Overhead Line Stringing Equipment Pull Tension Dual Models Machine TY45TP
