Product Details
| Brand Name | Libo | Place of Origin | China | |
| Model Number | RG412 cable with messenger |
Product Description
Certification:CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration

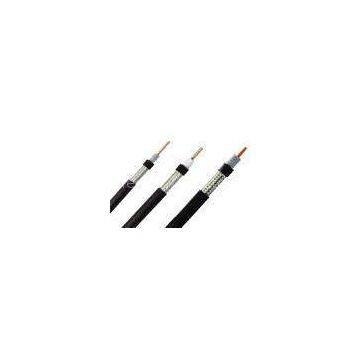

Aluminum Wire Braid RG412 Coaxial Cable, ROSH and Reach 185 Standard CATV Coaxial Cable With Messenger
Center conductor:
Oxygen free bare copper
Nominal diameter: 2.26mm
Dielectric:
Gas expanded polyethylene
Nominal diameter over dielectric: 9.26mm
Shield:
1st shield: bonded aluminum foil
2nd shield: aluminum wire braid, 0.16x7ends x24 carry, pitch is 47mm.
PE Jacket:
Nominal diameter over jacket: 12.40
Messenger: 1.30, zinc coated steel
Product description:
Inner conductor is oxygen free bare solid copper. Dielectric core is insulating grade virgin polyethylene. The 1st shield is two aluminum foils laminated to a strength member and a bonding resin on one side, the second shield is 82% aluminum wire braid; jelly or flooded compound is added before outer jacket extrusion. Outer jacket is PE.
Electrical properties:
Impedance : 75±3 ohms
Velocity of propagation: 86% nominal
Structure return loss: 21dB
Attenuation@ 68OF(20oC):
|
@Frequency MHZ |
dB/100 meters(MAX.) |
|
10 |
0.96 |
|
50 |
1.20 |
|
150 |
2.54 |
|
250 |
4.22 |
|
350 |
5.40 |
|
450 |
7.57 |
|
750 |
9.22 |
|
864 |
10.12 |
|
1000 |
10.85 |
Applications:
?CATV-community antenna television ?CCTV-closed-circuit television ?DBS-direct broadcasting satellite
