Product Details
| Brand Name | Libo | Place of Origin | China | |
| Model Number | RG216 cable |
Product Description
Certification:CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration

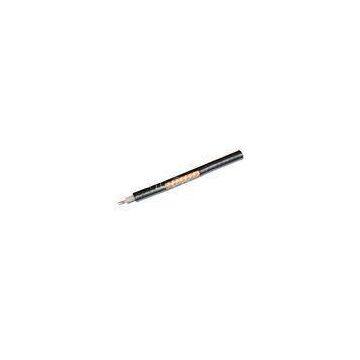

Anti-Interference RG216 Cable,? 75 Ohm Coaxial Cable With Bare Stranded Copper Wire
Product description:
Stranded copper wire as inner conductor, dielectric core is insulating grade virgin polyethylene. 90% Aluminum wire braid, PVC jacket.
Center conductor:
Bare stranded copper wire
7 x 0.39 solid copper?1.2mm
Dielectric:
solid polyethylene
Nominal diameter over dielectric: 7.11mm0.13mm(0.28 inches)
Shield: bare copper wires with 90% coverage.
PVC Jacket:
Nominal diameter over jacket: 10.8mm0.15mm (0.425 inches)
Jacket thickness: 1.05mm
Electrical properties:
Impedance: 75±3 ohms
Velocity of propagation: 66% nominal
SRL: 22dB
Attenuation@ 68OF(20oC):
|
@Frequency MHZ |
dB/100 meters(MAX.) |
|
10 |
1.80 |
|
100 |
6.50 |
|
400 |
14.10 |
|
1000 |
25.20 |
|
2000 |
43.00 |
|
3000 |
59.00 |
Applications:
RG216 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.
Competitive Advantage:
