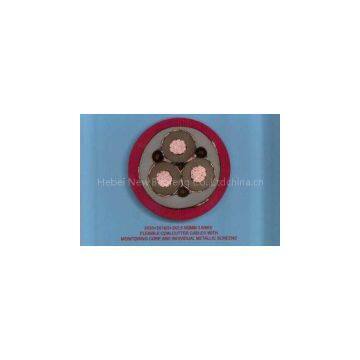

RUBER Insulated Electrical Cable For Rated Voltage 3.6/6KV~26/35KV Xlpe Power Cable
- T/T L/C D/P D/A
- 7 days
You May Like
-
Rated Voltage Including 35kV Mouse Resistant, Ant Resistant, UV Lay Resistant Power Cable
-
No Halogen Fire Retardant Fire Resisting Xlpe Power Cable 3500V / 5min Without Puncture
-
Aerial Insulated Cables Wit in Rated Voltage Up To Including 0.6/1KV Xlpe Power Cable
-
Parallel Bunched Aerial insulated Cable Xlpe Power Cable XLPE insulated aerial cables:90
-
Parallel Bunched Aerial insulated Cable Xlpe Power Cable has Safe Property
-
XLPE Insulated Power Cable For Ship, PO / PVC inner sheath High Voltage Cable
Product Details
| Brand Name | New Baofeng | Place of Origin | China | |
Product Description
XLPE Insulated Electrical Cable For Rated Voltage 3.6/6KV~26/35KV
?? For XLPE insulated power cable, either chemical method or physical method is employed to transform the molecular structure of PE from chain into three-dimensional network, i.e. thermoplastic PE is transformed into thermosetting XLPE. After cross-linking, the thermal and mechanical properties of PE have been greatly improved while its excellent electrical property are still retained.
? The maximum permissible operating temperature of the conductor of a XLPE insulated power cable is 90 which resistance is higher than that of PVC or PE insulated power cable. The cable has the advantage of simplicity in construction, lightness in weight, convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.
Product standard?? The product is manufactured according to the standard of GB/T12706-2002 “Extruded solid dielectric power cables for rated voltages from l KV (Um=1.2KV) to 35KV (Um=40.5KV)”or IEC, BS, DIN and ICEA upon request.
Applications?? The product is suitable for use in power transmission and distribution lines with rated power frequency voltage 3.6KV/6KV~26/35KV.
Type of cable|
Type |
Designation |
Application |
|
YJV |
Copper conductor, XLPE insulated and PVC sheathed power cable. |
For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces, Single core cable in magnetic duct is not permissible. |
|
YJLV |
Aluminum conductor, XLPE insulated and PVC sheathed power cable. |
|
|
YJY |
Copper conductor, XLPE insulated and PE sheathed power cable. |
|
|
YJLY |
Aluminum conductor, XLPE insulated and PE sheathed power cable. |
|
|
YJV22 |
Copper conductor, XLPE insulated, steel tape armored and PVC sheathed power cable. |
For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force. |
|
YJLV22 |
Aluminum conductor, XLPE insulated, steel tape armored and PVC sheathed power cable. |
|
|
YJV23 |
Copper conductor, XLPE insulated, steel tape armored and PE sheathed power cable. |
For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force |
|
YJLV23 |
Aluminum conductor, XLPE insulated, steel tape armored and PE sheathed power cable. |
|
|
YJV32 |
Copper conductor, XLPE insulated, steel wire armored and PVC sheathed power cable. |
For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force. |
|
YJLV32 |
Aluminum conductor, XLPE insulated, steel wire armored and PVC sheathed power cable. |
|
|
YJV33 |
Copper conductor, XLPE insulated, steel wire armored and PE sheathed power cable. |
|
|
YJLV33 |
Aluminum conductor, XLPE insulated, steel wire armored and PE sheathed power cable. |
