Home > Products > Carton Making Machines > Paperboard Carton Making Machines Powerful , Pneumatic Electric Stacker
Paperboard Carton Making Machines Powerful , Pneumatic Electric Stacker
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Cardboard Paper Carton Making Machines Pneumatic-Flapping CE ISO
-
30kw Automatic Carton Making Machinery , Rotary Die Cutter High Precision
-
Automatic Carton Making Flexo Printing Slotting Machine Four Color
-
Rotary Slitting Carton Making Machines 11kw , Clapboard Machine
-
Pneumatic Trimming Carton Making Machines Horizontal Die Cutting
-
High Speed Automatic Carton Making Machines Die-Cutter , Slotting / Printing
Product Details
| Brand Name | XINTIAN | Place of Origin | China | |
| Model Number | BZ |
Product Description
Certification:CE,ISO9001:2000

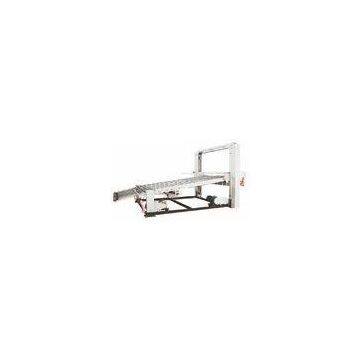

Paperboard Carton Making Machines Powerful , Electric Stacker
Packaging?Type:?Pallet
Driven?Type:?Electric
Automatic?Grade:Semi??Automatic?
Voltage:380V?50HZ
Power:5?KW
Application:?Cardboard?pilling?
Specification:
|
type |
Gantry stacker |
brand |
canghai |
|
size |
DMS-48 |
Turntable Diameter |
3000(mm) |
|
Packaging height |
1700(mm) |
Turntable height |
1700(mm) |
|
speed |
160(r/m) |
width |
1400-2200mm |
Function of Pilling Department
1. The height of stack is 1600mm.
2. The rising and descending of the machine tool platform is driven by the powerful chain. The rising and
descending motor has equipped with the brake function to keep fixed position of the machine tool
unchanged without falling down.
3. With the paperboard’s piling to a higher level, the machine tool platform automatically adjusts the tilting
height; when the paperboards are piled to the planned height, the paper receiving tray will automatically
open and catch the paperboard under the pneumatic motion.
4. It is equipped with security protection device which forces the platform not to fall down abruptly to ensure
the worker’s safety.
5. The surface corrugated belt can prevent the sliding of the paperboard.
The width of the stacker includes 2200mm, 2800mm, 3200mm.
