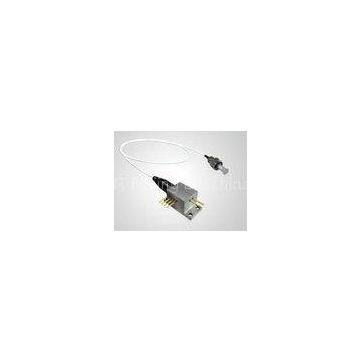

808nm Fiber Coupled Diode Laser Module , 3W 4W 2W laser module
- T/T L/C D/P D/A
- 7 days
You May Like
-
50W High Power Diode Lasers 940nm 105m For Material processing
-
15W 0.22N.A. Detachable 808nm Pump Diode Lasers Module High Power
-
Fiber Bundled 808nm Diode Laser Module 10W , High Power laser module
-
915nm 55W Diode Laser Module for Fiber Laser Pumping / Medical
-
976nm 15W 400m Fiber Bundled Diode Laser Module for Laser Pumping
-
OEM Diode Laser Module , High Brightness 0.22N.A. 808nm 30W laser module
Product Details
| Brand Name | BWT | Place of Origin | China | |
| Model Number | K808D06FA-4.00W |
Product Description
Certification:ISO9001
808nm??4W??Fiber Coupled Diode Laser Module?K808D06FA-4.00W
?
?
Features:
?
?
?
Applications:
?
Specifications(25℃) | Symbol | Unit | K808D06FA-2.00W | K808D06FA-4.00W |
|
Optical Data | CW-Output Power (1) | Po | W | 2 | 4 |
Center Wavelength | λc | nm | 808 |
||
Tolerance of?λ | - | nm | ±3,±10 |
||
Spectral Width (FWHM) | △λ | nm | <3 |
||
Temperature Drift of?λ | - | nm/℃ | ~0.3 |
||
Fiber Data | Fiber Core Diameter | Wc | μm | 105, 200 |
|
Numerical Aperture | N.A. | - | 0.22 |
||
Fiber Connector | - | - | SMA-905 |
||
Electrical Data | Operating Current | Iop | A | 2.5 | 5.0 |
Threshold Current | Ith | A | 0.4 | 0.8 |
|
Conversion Efficiency | η | % | 30~40 |
||
Slope Efficiency | ηD | W/A | 0.9~1.0 |
||
Operating Voltage | Vop | V | 1.9 |
||
Reverse Voltage | Vre | V | 2 |
||
PD Data | Current | Imo | mA | 0.2~1.0 |
|
Aiming Beam Data | Output Power | Pa | mW | >2 |
|
Wavelength | λa | nm | 650±10 |
||
Voltage | Va | V | 2.2(2) |
||
Current | Ia | mA | <30 |
||
Others | Operating Temperature | Top | ℃ | 10~30 |
|
Storage Temperature | Tst | ℃ | -20~+80 |
||
Expected Lifetime | MTTF | h | >10,000 |
||
Dimensions (fiber and connector not included) | - | mm | 26.0×12.7×12.5 |
||
Lead Soldering Temperature | Tis | ℃ | 260(10 sec.) |
(1)??? Other fibers available upon request.
.
