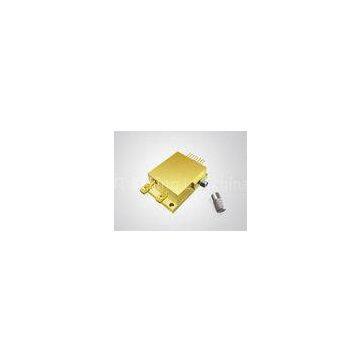

High Brightness 808nm Diode Laser Module , 0.22N.A. 30W laser diode module
- T/T L/C D/P D/A
- 7 days
You May Like
-
HHL Packaged 8W High Power Diode Laser Module 808nm 400m 0.22N.A.
-
HHL Packaged Window 10W 808nm Diode Laser Module for Graphic arts
-
808nm Diode Laser Module 5W 10W HHL Packaged Window Output for Medical
-
808nm Fiber Coupled Diode Laser Module , 3W 4W 2W laser module
-
50W High Power Diode Lasers 940nm 105m For Material processing
-
15W 0.22N.A. Detachable 808nm Pump Diode Lasers Module High Power
Product Details
| Brand Name | BWT | Place of Origin | China | |
| Model Number | K808DABCN-30.00W |
Product Description
Certification:ISO9001
?High Brightness 0.22N.A. 808nm 30W Diode Laser Module?K808DABCN-30.00W
?
?
Features:
?
??? 30W output power
??? Standard fiber coupling for 400 μm core diameter
??? 808nm wavelength
??? Compact package
?
?
Application:
?
??? Solid-state laser pumping
Specifications (25℃) | Symbol | Unit | K808DABCN- 15.00W | K808DABCN- 30.00W |
|
Optical Data | CW-Output Power | Po | W | 15 | 30 |
Center Wavelength | λc | nm | 808 |
||
Tolerance of?λ | - | nm | ±3 |
||
Spectral Width (FWHM) | △λ | nm | <3 |
||
Temperature Drift of?λ | - | nm/℃ | ~0.3 |
||
Connector Data | Fiber Core Diameter | Wc | μm | 400 |
|
Fiber Numerical Aperture | N.A. | - | 0.22 |
||
Fiber Connector | - | - | SMA-905 |
||
Electrical Data | Operating Current | Iop | A | 9 | 9.5 |
Threshold Current | Ith | A | 1.2 | 1.2 |
|
Conversion Efficiency | η | % | 44 | 40 |
|
Slope Efficiency | ηD | W/A | 1.9 | 3.6 |
|
Operating Voltage | Vop | V | 3.8 | 7.8 |
|
Reverse Voltage | Vre | V | 4 | 8 | |
Others | Operating Temperature | Top | ℃ | 10~30 |
|
Storage Temperature | Tst | ℃ | -20~80 |
||
Expected Lifetime | MTTF | h | >10, 000 |
||
Dimensions | - | mm | ~44.5×31.8×18.0 |
||
Lead Soldering Temperature | Tis | ℃ | 260(10 sec.) |
