Fiber Bundled 808nm Diode Laser Module 10W , High Power laser module
- T/T L/C D/P D/A
- 7 days
You May Like
-
915nm 55W Diode Laser Module for Fiber Laser Pumping / Medical
-
976nm 15W 400m Fiber Bundled Diode Laser Module for Laser Pumping
-
OEM Diode Laser Module , High Brightness 0.22N.A. 808nm 30W laser module
-
High Power Diode Laser Module 976nm Wavelength - Stabilized for Laser Pumping
-
Pump High Power Diode Laser Module 976nm 0.15N.A. / 0.22N.A. 30W
-
808nm Diode Lasers 30W 0.22N.A. , High Power Pump Laser Diode
Product Details
| Brand Name | BWT | Place of Origin | China | |
| Model Number | K808K02MN-15.00W |
Product Description
Certification:ISO9001

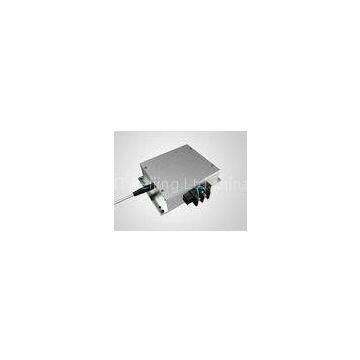

?High Power 808nm 10W 0.22N.A. Fiber Bundled Diode Laser Module K808K02MN-15.00W
BWT\'s 808nm diode laser modules deliver the output power of 10W and 15W. These modules\' strengths lie in high heat-removal ability, excellent spot uniformity, top-head output, and cost-effective. By adopting specialized fiber-coupling techniques, BWT\'s high power diode laser modules realize volume products with a high efficiency, stability and superior beam quality.?
?
Features:
? 808nm wavelength? ? 10W, 15W output power ? ?375μm fiber bundle diameter ? ?0.22N.A.? ? ?650nm aiming beam (optional)?Applications:
? ?Laser pumping ? ?Illumination ? ?Medical use ? ?Material processing?|
Specifications(25℃) |
Symbol |
Unit |
K808K02MN-10.00W |
K808K02MN-15.00W |
|
| Optical Data |
CW-Output Power(1) |
P0 |
W |
10 |
15 |
|
Center Wavelength |
λc |
nm |
808 |
||
|
Tolerance of?λ |
- |
nm |
±3, ±10 |
||
|
Temperature Drift of?λ |
- |
nm/℃ |
~0.3 |
||
|
Fiber Data(2) |
Fiber Core Diameter |
Wc |
μm |
375 |
|
|
Numerical Aperture |
N.A. |
- |
0.22 |
||
|
Fiber Connector |
- |
- |
SMA-905 |
||
|
Electrical Data |
Operating Current |
Iop |
A |
2.6 |
3.0 |
|
Threshold Current |
Ith |
A |
0.4 |
||
|
Conversion Efficiency |
η |
% |
40 |
||
|
Slope Efficiency |
ηD |
W/A |
4.7 |
6.6 |
|
|
Operating Voltage |
Vop |
V |
~10.0 |
~14.0 |
|
|
Reverse Voltage |
Vre |
V |
~10.0 |
~14.0 |
|
|
Others |
Operating Temperature |
Top |
℃ |
10~30 |
|
|
Storage Temperature |
Tst |
℃ |
-20~+80 |
||
|
Expected Lifetime |
MTTF |
h |
>10, 000 |
||
|
Dimensions (fiber and connector not included) |
|
