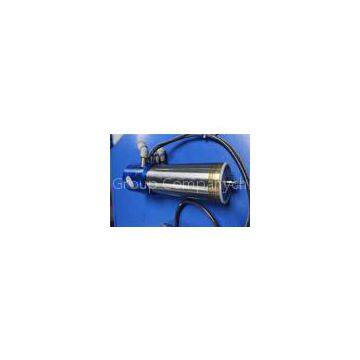

Compatible ABL H516D WW D1722 160,000RPM KL161D High Speed Air Spindle PCB PRECISION DRILLING

Quick Detail:

PRODUCT DESCRIPTION

KL161D industry standard body style and tool holding system spindle replace for ABL H516D or WW D1722 Full Range from 20,000 to 160,000 rpm, air bearing type in long life, spindle weight 4.1kg with Diameter tool 3.175mm and body size ? 61.9,Max power 0.85KW, Collet torque ( N.cm ) >=150. Sensor available

The Parameter of KL161D:

Max power:0.85KW

Coolant:Water oil

Fixed voltage: 200V

Fixed current: 4A

Static Runout: <2μm

Dynamic Runout: <7μm

Vibration: 1.0MM/S

Competitive Advantage:

Low Static

Low Dynamic RUN OUT

Stable character and long life

Power and very low heat generation

Good slot and big hole drilling

Less running costs

ATC feeder / ATC tool change for micromachining

Environment friendly

KLKJ Advantage

The higher spindle speeds available allow for increased productivity whilst ensuring that accuracy and repeatability is maintained.

Advanced analysis and detailed design has created a spindle with exceptional reliability and increased efficiency.

KLKJ increased productivity and efficiency available allows mass production drilling and routing spindle.

APPLICATION :

PRINT CIRCUIT BOARD PRECISION DRILLER

2 HEAD OR 4 -6 HEAD DRILLERaaaaa

HOLE RANGE: ?6.35mm-0.05mm

MACHINE REFERENCE: SCHMOLL POSALUX KLG PLURITEC KLINGEINBERG LENZ EXCELLON HITACHI

SPECIFICATION:

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?KL161 SPINDLE OUTLINE DRAWING

Why choose KLKJ?

With nearly 15 years technology in spindle maintenance, 10 years success experience for spindles parts production, and 9 years spindle R&D, KLKJ succeed in offer air bearing spindle up to 200krpm.

All spindles at the KLKJ are fully checked and tested using stringent quality control procedures. KLKJ ensures every repaired spindle passes the following points to make it in long life and stable char
