Precision High Frequency Spindles CNC Mill Spindle Compatible WWD1686 180000RPM

?
?
?

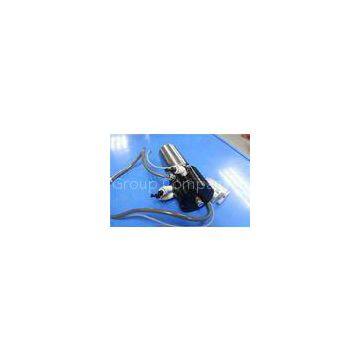

Compatible WWD1686 180,000RPM KL180B Air Bearing Spindle PCB PRECISION DRILLING
?
Quick Detail:
?

?
?
PRODUCT DESCRIPTION
?

KL180B high speed rotation and high accuracy spindle replace for WW D1686-10; D1686-XX Full Range from 20,000 to 160,000 rpm, air bearing type in long life, spindle weight 3.6kg with COLLET size ?1/8” and body size ? 61.9

Max power:0.75KW

Air Pressure: 6.0 kgf/cm2

Coolant:Water oil

Fixed voltage:210V

Fixed current:4A

FREQUENCY (HZ): 334-3075

?
Competitive Advantage:
Low Static
Low Dynamic RUN OUT
Stable character and long life
Power and very low heat generation
?
ATC feeder / ATC tool change for micromachining
?
KLKJ Advantage
?
The higher spindle speeds available allow for increased productivity whilst ensuring that accuracy and repeatability is maintained.
Advanced analysis and detailed design has created a spindle with exceptional reliability and increased efficiency.
KLKJ strong team available allows increased productivity and efficiency.?
APPLICATION :
PRINT CIRCUIT BOARD PRECISION DRILLING
HOLE RANGE: ?6.35mm-0.05mm

MACHINE REFERENCE:KLINGINBERG PLURITEC ；HITACHI ；LENZ ；ANDERSON ….

?
SPECIFICATION:
?

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? SPINDLE OUTLINE DRAWING

Why choose KLKJ?

With nearly 15 years technology in spindle maintenance, 10 years success experience for spindles parts production, and 9 years spindle R&D, KLKJ succeed in offer air bearing spindle up to 200krpm.

All spindles at the KLKJ are fully checked and tested using stringent quality control procedures. KLKJ ensures every repaired spindle passes the following points to make it in long life and stable character:
