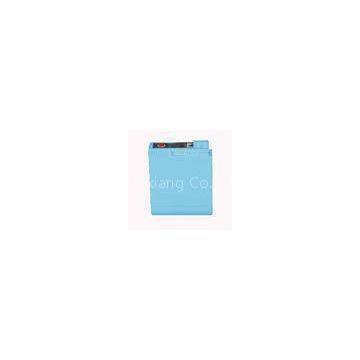

Adjustable 12V 2600mAh rechargeable heated Li-ion battery packs with protection circuit

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	PoMaX		Place of Origin	China
Model Number	LX-DRF05H

Delivery Time:In 7 days
Certification:CE, FCC, RoHs

Adjustable 12V 2600mAh rechargeable heated Li-ion battery packs with protection circuit

Parameters

Model No.	LX-DRF05H
Nominal Voltage	11.1v
Working Voltage	9V-12.6V
Nominal Capacity	2600mAh
Charge Cut-off Voltage	12.6v
Charge Current	1A
Standby Current	≤50μA
Max. Output Power	25W MAX
Operating Efficiency	≥99%
Loading Resistance	5Ω-200Ω
Charge Method	CC/CV Constant Current/Constant
Charge Temperature	0℃—40℃
Discharge Temperature	-20℃～ +60℃
Charge Duration	2.5hrs(Standard)
Cycle Life Time	Above 500 cycles
Internal Impedance	PCB Internal Impedance<80mΩ; Battery Internal Impedance <180mΩ
LED Display	4-heat settings, capacity indication
Output Terminal	DC5.52.110mm
Usage	Heated jackets, heated seat cushions, etc.
Battery Size	927223mm
Weight	190g
Color	White, black, red, pink, blue, brown, etc.
Certificates	CE, FCC, ROHS
Lead Time for Sample	3~7 days
Lead Time for Bulk Order	7~15 days

Operation:

Power Indication:

①No Load, press ON/SETUP button to power on, LED in RED color, 90%<= power<=100%

②No Load, press ON/SETUP button to power on, LED in ORANGE color, 30%<= power<=90%

③No Load, press ON/SETUP button to power on, LED in GREEN color, power<=30%

Output Indication:

①Press ON/SETUP button, LED in RED color, the output power=98%

②Press ON/SETUP button, LED in ORANGE color, the output power>=75%

③Press ON/SETUP button, LED in GREEN color, the output power>=50%

④Press ON/SETUP button, LED flash, the output power>=25%

⑤Press ON/SETUP button, LED is off, the battery power off

Application:

heated snow sports wears, heated stadium seat cu
