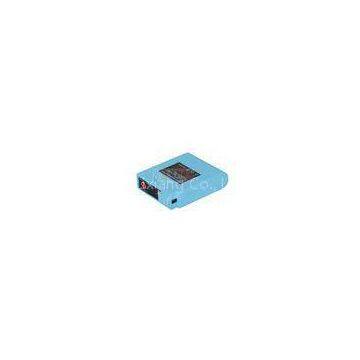

Portable LED Display 12V 2200mAh heated Li-ion battery packs with 12V output

Model No.

LX-DRF05

Nominal Voltage

11.1v

Working Voltage

9V-12.6V

Nominal Capacity

2200mAh

Charge Cut-off Voltage

12.6v

Charge Current

1A

Standby Current

≤50μA

Max. Output Power

25W MAX

Operating Efficiency

≥99%

Loading Resistance

5Ω-200Ω

Charge Method

CC/CV Constant Current/Constant

Charge Temperature

0℃—40℃

Discharge Temperature

-20℃～ +60℃

Charge Duration

2.5hrs(Standard)

Cycle Life Time

Above 500 cycles

Internal Impedance

PCB Internal Impedance<80mΩ;

Battery Internal Impedance <180mΩ

LED Display

4-heat settings, capacity indication

Output Terminal

DC5.5*2.1*10mm

Usage

Heated jackets, heated seat cushions, etc.

Battery Size

92*72*23mm

Weight

190g

Color

White, black, red, pink, blue, brown, etc.

Certificates

CE, FCC, ROHS

Lead Time for Sample

3~7 days

Lead Time for Bulk Order

7~15 days

Remaining Capacity

LED#1

90~100%

●

30%～90%

●

0%～30%

●

Output Power

LED#1

98%

●

75%

●

50%

●

25%

●|○

Off

○
