Product Details
| Brand Name | XHOUG | Place of Origin | China | |
| Model Number | XHOUG |
Product Description
Certification:CE & ISO9001:2000

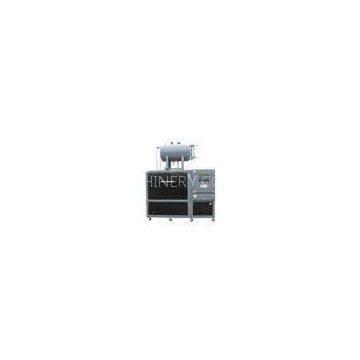

90KW Explosion-proof Oil Temperature Control Unit Machine , 300 Degree
Quick Detail:
1. Explosion-proof isolated
2. Electric box external charged accessories explosion-proof
3. Explosion-proof equipment(optional)
4. Certification:CE & ISO
5. Pump pressure:5.0Kg/cm2
6. Pump power: 5.5KW
7. Alarm function:pump reversal,Oil shortage, overheating, overload ,oil spill, abnormal heating alarm and trip power outage
Description:
Explosion-proof isolated electrical box Electric box external charged accessories explosion-proof Explosion-proof equipment Air blowing and return oil function(optional) Thermometer for return oil Automatic air-exhausting function after startup Switchover of heating power Negative-pressure system(optional) RS485 communication function for automated management(optional) Delay cooling shut-down function(optional) BY-PASS pressure release loop for hot oil Customizable multi-point temperature control unit Customizable horsepower and heating power of oil pump Brands OMRON, FUJI, TE, LG, MOELLER, ABB, and WEST for electric appliances Range of temperature control: +25℃-300℃ for incoming water CE certificate Stainless steel integrated pipelines for less pipe resistance and rust Control mode: imported microcomputer or PLC(optional) Perfect safety protection, fault display, easy repair and maintenance even free of professionalsSpecifications:
|
ITEM |
UNIT |
AEOT-75BF-90 |
|
Temp control range |
℃ |
Normal temp-300℃ |
|
Temp control accuracy |
℃ |
PID±1℃ |
|
Power supply |
AC3∮380V(3Phase+Earth) |
|
|
Heat transfer medium |
Thermo conductive oil |
|
|
Cooling method |
Without Cooling |
|
|
Expansion Tank |
L |
150(External) |
|
Heating capacity |
KW |
80(40+40)/90(45+45) |
|
Pump power |
KW |
5.5 |
|
Pump flow |
M3/h |
12.5(18) |
|
Pump pressure |
Kg/cm2 |
5.0(4.0) |
|
Max. power consumption |
KW |
96 |
|
Alarm function |
Pump reversal/Oil shortage/Overheating/Overload/Oil spill/Abnormal heating alarm/trip power outage |
|
|
Cooling water pipe |
inch |
NA |
|
Circulating oil pipe |
inch |
1-1/2 |
|
Size(L×W×H) |
mm |
2250×800×1800 |
|
Heat pipe size/ length+ flange outer diameter |
L×φ |
1650×φ520 |
Competitive Advantage:
1. Strict quality control system
2. Three factories in shenzhen, tianjin and suzhou. More than 60 offices in China.
3. Our product is environmental and energy-saving
4. We have the production certification organic heat transfer material heater
5. High density heat insulation cotton and aluminum foil
6. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST
7. Imported microcomputer or PLC
8. Customization thick copper pipe 1.0-1.2
