Home > Products > Mould Temperature Controller > Automatic Digital Water Type Plastic Mould Temperature Controller RO-03WH

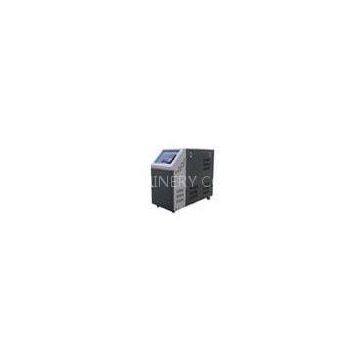

Automatic Digital Water Type Plastic Mould Temperature Controller RO-03WH
Negotiable
/ Set
1 Set(Min.Order)
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Precision Water Tank Copper Coil PipeEvaporator Laser Water Chiller RO-03A
-
Differential Multi Channel Water Type Plastic Injection Mold Temperature Controllers RO - 03WH ~ RO
-
Dual-Heating Design High Stability Microprocessor Water Circulation Mould Temperature Controller 30-
-
3phase 380 / 415 - 50 / 60Hz Anti-freeze Protector High Precision Laser Water Chiller For Chemical E
-
R22 / R134A / R407C Low Noise Small Vibration Large Energy Air Cooled Screw Chiller
-
Energy-Saving Enclosed Case Shell and Tubes Industrial Water Chillers For Plastic, Mould, Electropla
Product Details
| Brand Name | XHOUG | Place of Origin | China | |
| Model Number | XHOUG |
Product Description
Certification:CE & ISO9001:2000
Automatic Digital Water Type Plastic Mould Temperature Controller RO-03WH
Description:
1.high-efficiency;
2.energy saving;
3.durability and safety;
4.temp controling precision may reach ±1 ℃ and scope 30-180℃
petitive price.
Water Type Feature
1.Computer touches type control, operate easily ,
2.Imports the two group P.I.D temperature of micro computer control table .Touch type store up , calculate automatically , save power more than 35%,
3. Protect safely and fault instruction system is perfected ,
4.Import high-grade assembly, tenure of use is long,
5.The warm speed of ascend and descend is rapid, temperature is stabilized accurately
6.Unique two power heating designs and suitable different temperatures control place to use, the effect of energy saving is obvious
7.One body of stainless steel is into type , it is little that pipe harms , it is even to heat up
8. Start automatic exhaust function
9.Mould backwater temperature detection table
?
| ltem | Unit | Model | |||||
| Ordinary? | ?High Temp And High Pressure? | ||||||
| RO-03WS | RO-06WS | RO-09WS | RO-06WH | RO-09WH | RO-12WH | ||
| Heating Medium | Water | ||||||
| Tem Scope | ℃ | 30-100℃ | 30-180℃ | ||||
| Heating Capacity | KW | 3 | 6 | 9 | 6 | 9 | 12 |
| Pump | Power | KW | 0.37 | 0.37 | 0.75 | 0.75 | |
| Max Pressure | Kg/c㎡ | 2.5 | 2.5 | 3 | 4.5 | 5 | 5 |
| Max rate of flow | L/min | 50 | 50 | 50 | 100 | ||
| Cooling Way | Indirect Cooling | Direct Cooling | |||||
|
Match Pipe ?Diameter |
Oil Pipe | Inch | 1/2×2 | 1/2×2 | 1/2×2 | 3/4×2 | |
| Water Pipe | Inch | 1/2×2 | |||||
| Heating Medium Volume | L | 8 | 10 | 8 | 10 | ||
| Dimension(L*W*H) | mm | 690×368×620 | |||||
| Weight | Kg | 45 | 50 | 62 | 60 | 63 | 67 |
| Power Supply | Volt | 3PHADE-380V-50HZ |
