High performance Steam Self Pressure Regulating Valve For Oilfield Drilling Rig
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Two / Three Way High Temperature Ball Valves40mm For Water / Steam
-
Heavy Duty Soild Tyre Curing Press Machine with HIGH CLOSING FORCE
-
plc control Rubber Curing Press Machine , TyreVulcanizingMachine Product steel-belted tire
-
Customized Automatic Solid Tire Curing Press Machine Hydraulic 48 inch
-
Heavy Duty Automatic Tire Curing Press Hydraulic Vulcanizing Press
-
High Closing Force Tire Curing Pressing Machine , Hydraulic Vulcanizing Press
Product Details
| Brand Name | ROSNM | Place of Origin | China | |
Product Description
Certification:ISO9001

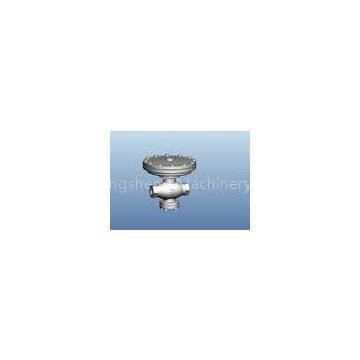

High performance Steam Self Pressure Regulating Valve For Oilfield Drilling Rig
Quick Detail:
|
Name |
SELF-SUPPORTION ADJUSTMENT VALVE |
Brand Name |
ROSNM |
|
Color |
As your request |
Certificate |
ISO9001 |
|
Warranty |
1 year |
Place of Origin |
RUIAN |
Description:
Self-supporting pressure adjustment valve with signal control is kind of pneumatic executive classification ,it is used with air decompression valve and program controller .Air pressure signal is imput ?to make valve gate open, through the feed back of pressure after opening valve gate to adjust valve gate opening automatically .thus it can work normally. ZZY-1.0PRⅢM self-supporting pressure adjustment valve with sm all size simple structure ,working ?naormally ?is adopted by stainless steel film sheet ,so it is especially suitable for steam agency ,and it is widely used in rubber tyre vulcanized ma- chine. Product executive standard:HG/T3237-2006
Applications:?
used in rubber tyre vulcanized machine
Specifications
|
Model |
SELF-SUPPORTION ADJUSTMENT VALVE |
|
Suitale ?for agency |
steam filtered or other non-corosion gas |
|
nominal pressure |
1.0Mpa |
|
nominal diameter |
DN20 |
|
adjustalbe pressure scope |
0.02~0.6 Mpa |
|
signal pressure scope |
0.05~0.62 Mpa |
|
pressure feature |
△P2/△P1 ≤2.9% |
|
permitted leakage volume |
DN20 21ml/min |
|
working temperature |
-20~+300℃ |
1: (overall and connection size)
|
????? Codename Size |
￠ |
L |
H1 |
H2 |
H |
￠A |
Pipe connection mode |
Up and down film room pipe connecting |
|
DN20 |
185 |
140 |
71 |
101 |
172 |
220 |
ZG3/4 ZG3/4 cone pipe thread |
M16×1.5? ZG? 1\"/4 |
|
DN20 |
160 |
140 |
72 |
117 |
189 |
195 |
ZG3/4 ZG3/4 cone pipe thread |
M16×1.5? ZG? 1\"/4 |
To make rubber tyre vulcanied machine neccessity meeding convenien, sa following value according to true measurement.just for reference(unit:Mpa)
|
???????? P2 Ps |
Start |
0.02 |
0.03 |
0.05 |
0.10 |
0.2 |
0.3 |
0.4 |
0.6 |
|
(P1=0.7) Ps |
0.022 |
0.042 |
