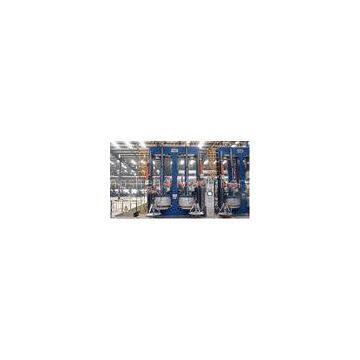

1.6MPa Vertical Vulcanizer Dual Mode Hydraulic Tire Curing Press With PLC

ISO9001 MODULAR DESIGN? OF TYRE VULANIZING MACHINE FOR SUV

Quick Detail:

Description:

> Technical parameter:51〞hydraulic vulcanizer

> PRODUCT IDENTIFICATION NUMBER:LLY1330BBC4B

> Max Mould Closing Force:1850KN

> Hydraulic Pressure:21Mpa

> Dia. of Platen:Φ1300mm

> Bead Range:14\"-20\"

> Maximum setting steam pressure:(Decided by user)

> Maximum inner pressure nitrogen of vulcanization: 2.4 MPa

> Maximum external pressure of steam: 1.4MPa

> Maximum inner pressure of steam: 1.6MPa

> Main power source: 3φ,380V,50Hz

> Control power source: 220V,50Hz or 24DC

> Type of main drive : Vertical lifting type

> Type of tire manufactured: Steel-belted tire

Why to choose our Tire Curing Press

1: Advantages

small dimensions
frame subjected to endurance test
high closing force

2: The design pressure of the hydraulic system is not easy to generate leakage in low pressure range.

3: Flange is used to connect all pipes and valves, convenient for disassembly and maintenance;

4: Four position after inflating device using the cylinder turning, the hub motor automatically adjust width, the rest of the action is driven by cylinder;

5: The lifting position of manipulator increase proximity switch, in each production cycle, automatic correction height, guarantee the loading position height unchanged;

6: Replacing the tire specifications, detector swift of the lifting ring using adaptive, without manual adjustment;

Applications:?

Used for vulcanization of steel-belted tire

Specifications
