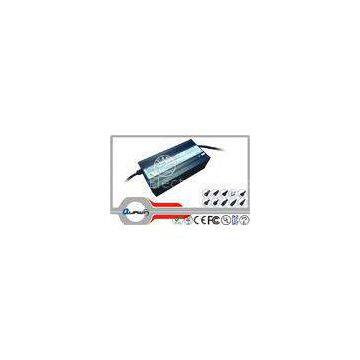

Custom 42V 36A Lithium-Ion Battery Chargers With Mcu Controller

Custom 42V 36A Lithium-Ion Battery Chargers With Mcu Controller

Quick Detail:

Brand Name:QUAWIN

Model Number:QW370-360-L

Use:37V Li-ion or Li-polymer battery pack

Type:Electric

Place of Origin:Guangdong China (Mainland)

Battery charger:automatic battery charger 42V

Certificate:CE ROHS

Color:Black/Silver

Input voltage:AC 180～264V 45/65Hz

Output voltage:42V

Output current:36A

Output power:1512W

Charge mode:CC—CV(Constant Current—Constant Voltage),with MCU controller.

Output Connector:Alligator Clip,SR175A Output Plug,SB175A Output Plug,SB50A Output Plug,Custom

Packaging & Delivery :

inner package: white box/polybags/at your request outer package:carton

Delivery Detail:sample within 5 work days,7~25 days for bulk order

Specifications:

?37V Li-ion or Lithium Polymer battery PACK

Features:

? ? Charging mode:CC—CV(Constant Current—Constant Voltage),with MCU controller.
? ? High efficiency and low power consumption
? ? Stabilized output and low noice
? ? Efficiency(at 100% load): ≧90%
? ? Operating temperature:-10C ~ 45C
? ? Storage temperature:-20C ~ 70C
? ? Operating humidity:5%~90%RH
? ? Shock & Vibration:SAEJ1378 Standard
?

Specification:

? ? Input: AC 180～264V 45/65Hz

? ? Output: DC 42V

? ? Charging current: 36A

? ? Weight: 3500g(only body)
? ? Dimension:290*150*85mm

Safety protections:

? ? Over Voltage protection

? ? Short Circuit protection

? ? Polarity error protection

? ? Over power protection
?

The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:

? ? LED always green:fully charged or no connected.
? ? LED slowly flashes red:battery is being charged.
? ? LED fast flashes red:Charger under protection (over temperature protection,output over-voltage protection).
?

Call us to know more details datasheet.
