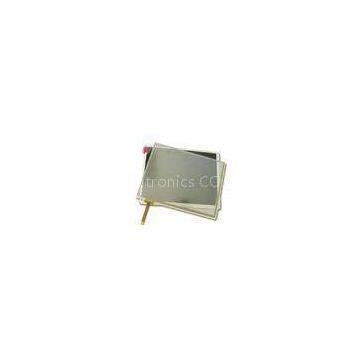

CLAA057VC01 CW lcd display module 680x480 5. 7 inch TTL LCD Panel Replacement
- T/T L/C D/P D/A
- 7 days
You May Like
-
Customized CPT tablet pc touch panel TFT Display Screen CLAA057VA02 CW
-
1024x600 20ms 250nits Industrial LCD Monitors CLAA101ND07 CW with RGB vertical stripe
-
10.2 inch 1024x600 industrial lcd module CLAA102NA0ACW for digital camera
-
DVD Player 500nits industrial lcd panel Replacement 10.1 inch CLAA101ND06 CW
-
Custom TTL LCD Panel Industrial LCD Monitors 5.7 inch CLAA057VA01CW
-
10.4\" LVDS industrial TFT lcd module 1024x768 CLAA104XA02 CW with LED backlight
Product Details
| Brand Name | CPT | Place of Origin | China | |
| Model Number | CLAA057VC01 CW |
Product Description
Certification:CE ,ROHS
CLAA057VC01 CW lcd display module 680x480 5. 7 inch TTL LCD Panel Replacement
Quick Detail:
1. Lcd size:5.7\"
2. Resolution: 640×3(H)×480(V)
3. Brightness: 220nits
4. Weight: 110g
5. Interface: TTL
6. Backlight: LED
Applications:
industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell.
Specifications:
|
Item |
Specification |
|
Display Area (mm) |
116.16(H) × 87.12(V) |
|
Resolution |
640(H) × 3(RGB) × 480(V) |
|
Pixel Pitch (mm) |
0.1815(H) × 0.1815(V) |
|
Pixel Arrangement |
R,G,B vertical stripe |
|
Display Mode |
Normally White |
|
Number of Color |
262K |
|
Viewing Direction |
6 o’clock |
|
Response Time (Tr+Tf) |
30ms(typ) |
|
Contrast Ratio |
300:01:00 |
|
Luminance (cd/㎡) |
220nit(typ) |
|
NTSC |
50%(typ) |
|
Viewing Angle |
140 degree (Horizontal),100 degree(Vertical) |
|
Electrical Interface |
TTL |
|
Power Consumption (W) |
1.4W(typ) |
|
Outline Dimension(mm) |
127(W) × 100(H) × 6.6(D) |
|
Module Weight(g) |
110g(typ) |
