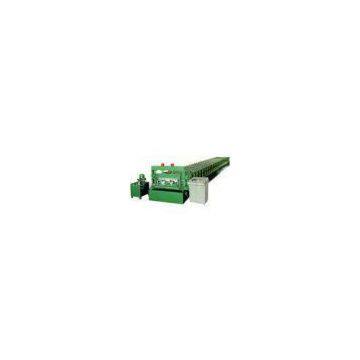

10M/MIN Metal Floor Deck Roll Forming Machine / Steel Deck Roofing Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HuaTong		Place of Origin	China
Model Number	HT 600

Product Description

Delivery Time:45 days after receipt of the advance deposit.
Certification:ISO9001：2008

10M/MIN?Metal Floor Deck Roll Forming Machine / Steel Deck Roofing Machine
?
?

Quick detail

Name	floor deck roll forming machine	use	road
Color	any	certification	ISO9001:2008
warranty	1 year	Line speed	10M/MIN

Profile drawing of the production

Production flowing chart of the floor decking roll forming machine

?

Specification
?
?

Thickness of middle plate	20
Step of roller	20
Diameter of shaft	120mm
Power of main motor	11kw*2
Motor power of hydraulic station	4kw
Line speed	10m/min
Accuracy of cutting	2mm
Razor blades material	?Cr12, quenching 58-62 °.
Size of the machine	12m (length)1.5m (width) 1.5m (height)
plc	DELTA
Frequency converter	DELTA
After-sales service provide	?Engineers available to service machinery overseas
Material of frame	360 I beam
Material of shaft	(high grade) 45# Steel,quenching and Tempering treatment
Material of roller	45# steel
Treatment of roller	Hard chromize coated
Drive type of roll forming machine	Drive by chain
chain	38.1mm(high grade)
Bearing	6210(high grade)
Reducer	9# cycloid reducer(high grade)
voltage	380v/50hz/3 phase
Oil pump of hydraulic station	Gear oil pump(high grade)
Hydraulic cutting	Cutting controlled by PLC
Effective width	910mm
Feeding width	1000mm
Thickness of formed steel	0.5-1.2mm

Machine components of full line:

(1) Manual un-coiler????????????? ???????????????????1 set
(2) Feeding device????????????????????????????????? ?1 set
(3) Roll-forming M/C??????????????????????????????? 1 set
(4) Hydraulic cutter????????????????? ????????????????1set
(5) PLC control system?????????????????????????????? 1 set
(6) Hydraulic station ????????????????????????????????1 set
(7) Product rack (un-powered)??????????????????????? ?1 set
?

Why to choose our roll forming machine?

We know there are many companies you can choose, and maybe you think our price is higher than others, so I will introduce the different between our products and others. And how to choose the good machine. And why ours
