Product Details
| Brand Name | Senjia | Place of Origin | China | |
| Model Number | SD-TT2008A |
Product Description
Certification:CE

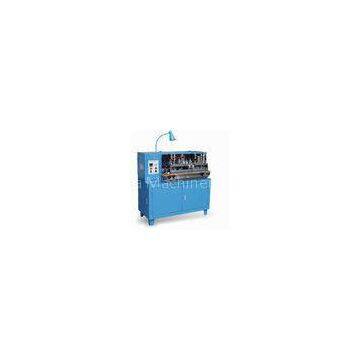

Two Core Flat Wire Tinning Machine Electric Wire Soldering Machine Stripping 6mm - 12 mm
Patent No: ZL 2009 2 0005901.4
Quick Detail:
|
Place of Original |
Dongguan Guangdong China(Mainland) |
|
Brand name |
Senjia |
|
Usage |
Tinning & Soldering |
|
Color |
Blue |
|
Certificate |
CE |
|
Feature |
Full-automated |
Applicable Cable:?UL2468, double-branch parallel cable, 20-28AWG, double-branch parallel cable, power chargers, two-core flat cable
Description:?
five function of wire separation, stripping, twisting, soldering and cutting in one and completed once for all. 4 working positions are saved compared with original working mode, featuring labor saving, stable quality, safe and easy for operation and high efficiency.
Special treatment: such as separation as per length shall be negotiated by both sides.
?
Specification&Parameter:
|
Model of machine |
SD-TT2008A |
|
Pressure connection speed |
1,800~2,000pcs/hour |
|
Wire stripping size |
6mm~12mm |
|
Max size of slitting |
20mm~60mm |
|
Soldering size |
3mm~12mm |
|
Stripping length of outer jacket |
As per customer’s requirements can be adjusted |
|
Stripping length of conductor jacket |
As per customer’s requirements can be adjusted |
|
Voltage |
AC220V/50Hz |
|
Pressure of air source |
0.5~0.8Mpa |
|
Weight |
250kg |
|
Dimension |
1,075mm*520mm*1,125mm |
Advantage:
?
Set sub-line, stripping, twisting, tin-plating, flat-cutting as one whole.?Save manpower, electricity, tin-wire and other resources.?Effectively increase productivity?compared with the original operation, significantly reduced injury rates.?Models with foot pedal operation, reducing operator labor intensity. meanwhile, models can be continuous or intermittent operation, cutlery and parts easy to change.
?
How to use Cutting Stripping Soldering&Tinning Machine ?
1, Get through pneumatic control system
2, Turn on the start work switch
3, Insert cable and then press foot switch
4, Continually Insert cable and press foot switch
5, stripping, twisting, tin-plating, flat-cutting as one whole.
