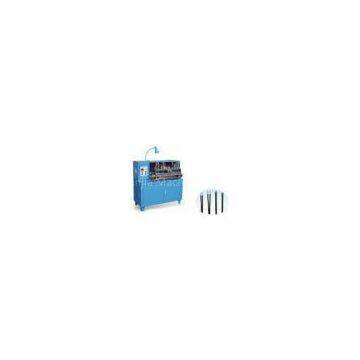

UL2468 / 20-28AWG Cable Automatic Soldering And Tinning Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Senjia		Place of Origin	China
Model Number	SD-TT2008A

Product Description

Delivery Time:20-25 working days after receiving advance payment
Certification:CE

?
?
Automatic Soldering&Tinning Machine SD-TT2008A Cut Strip Twist Soldering in One End
?
?
Patent No: ZL 2009 2 0005901.4
Applicable Cable: UL2468, double-branch parallel cable, 20-28AWG, double-branch parallel cable, power chargers, two-core flat cable
?
Description: five function of wire separation, stripping, twisting, soldering and cutting in one and completed once for all. 4 working positions are saved compared with original working mode, featuring labor saving, stable quality, safe and easy for operation and high efficiency.
?
Special treatment: such as separation as per length shall be negotiated by both sides.
?
Quick Detail:
?

Place of Original	Dongguan Guangdong China(Mainland)
Brand name	Senjia
Usage	Tinning & soldering
Color	Blue
Certificate	CE
Feature	Full-automated

?
Specification & Parameter:
?

Model of machine	SD-TT2008A
Pressure connection speed	1,800~2,000pcs/hour
Wire stripping size	6mm~12mm
Max size of slitting	20mm~60mm
Soldering size	3mm~12mm
Stripping length of outer jacket	As per customer’s requirements can be adjusted
Stripping length of conductor jacket	As per customer’s requirements can be adjusted
Voltage	AC220V/50Hz
Pressure of air source	0.5~0.8Mpa
Weight	250kg
Dimension	1,075mm520mm1,125mm

?
Advantage:
?
1, Set sub-line, stripping, twisting, tin-plating, flat-cutting as one whole.
2, Save manpower, electricity, tin-wire and other resources.
3, Effectively increase productivity
4, Compared with the original operation, significantly reduced injury rates.
5, Models with foot pedal operation, reducing operator labor intensity. meanwhile, models can be continuous or intermittent operation, cutlery and parts easy to change.
?
?
?
Products Showing:

?

?

?
Finished Products:

?
