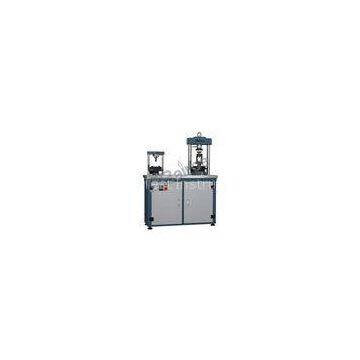

YAW-300 / YAW- 5 Mirocomputer Contol Compression Testing Machine, Dual Test Space

Brand Name	Bairoe		Place of Origin	China
Model Number	YAW-300/5

Delivery Time:A month
Certification:ISO 9001, CE

YAW-300 / YAW- 5 Mirocomputer Contol Compression Testing Machine, Dual Test Space

Features:

Stainless steel table provides more convenience in usage and maintenance. Servo hydraulic controlling system features precision in control, little noise and reduced low energy consumption. Servo hydraulic system consumes no energy under non-testing states, which saves energy and emits low heat. Reduced footprint requires little lab space. Dynamic display of load, displacement, time and real-time testing curve on the screen. Constant loading speed test supported. Capable of holding on maximum displacement. Domestically pioneered open-testing-method settings. Engineers may set up testing projects then operators may employ the projects for testing, greatly reduced the difficulty of the operations and the requirement in the skills and trainings of the operator. Domestically pioneered process-oriented design of testing control. Provides users with intuitive testing control procedures and a wide range of instruction types. Also supports dynamic instruction parameter assignment. Domestically pioneered highly efficient three-level operation model of testing data processing. Supports open testing data processing, appending custom testing data items and re-inspection of processed testing data. Rounding off of numerical testing data complies with GB 8170-87 (UDC511.1/2) Rules of Rounding Off for Numerical Values, supports rounding off in sections and custom rounding off. Characteristic testing data can be marked on testing graphs. Capable of statistical operations on testing data (average, standard deviation, coefficient of variance). Capable of re-analyzing test data and curves, and partial zooming of testing curves at will. Open testing report, support custom testing template, automatic generation of testing report, which can be printed, previewed or saved as files. Integrated with travel limit protection and full-scale overload protection.

Description:

The YAW-300/5 series of microchip controlled automatic compression testing machine (Dual test space) is mainly designed for compression on cement and mortar, or other mechanics performance tests in fields including construction materials, road, bridge, quality control department, etc. This product is integrated with the domestically pioneered servo hydraulic source loading technology, which enables steady and precise loading. A set of Panasonic? servo drivers and motors is adopted as its servo system. The whole testing system operates under 50dB, which is a great decrease, and is even better than electronic universal testing machines, which usually feature low operating noise. This technology enables the servo system to consume no power under non-testing states, reducing 65-70% of power compared to conventional constant-pressure hydraulic systems. This is a technology that cuts down energy consumption, and fulfills the requirements in the age of carbon-free economy development. This product complies with the standards and requirements of GB/T 17671, GB/T 50081, GB/T 2611, etc.

Technical Specifications:

Model	YAW-300/5

Capacity

300kN

5kN

Load measurement range

2%～100%

Load measurement accuracy

±1%

Load resolution

±1/500000 of Max capacity, no stepping, no change in full scale

Loading speed adjustment Range

0.05%～3%F.S./s

Loading speed accuracy

±1.0%(speed<0.1%F.S./s), ±0.5%(speed≥0.1%F.S./s)

Piston travel

100 mm

Compression platen distance

245 mm

/

Upper compression platen diameter

Φ108 mm

/

Lower compression platen diameter

Φ108 mm

/

Upper/lower rol
