Home > Products > Light Testing Equipment > 220V 50Hz Light Testing Equipment Lamp Tilt Test Bench 0-30 Degree GB7000
220V 50Hz Light Testing Equipment Lamp Tilt Test Bench 0-30 Degree GB7000
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Safety Sharp Edge Tester Toys Testing Machine ASTM F963 / EN-71
-
Test Sphere Probe Ingress Protection Test Equipment IEC61032 Fig.1 With Force 50N
-
IEC61032 Figure 3 Test Finger Probe Test Rod Probe C 2.5mm
-
Test Rod Probe D Test Finger Probe IEC61032 Figure 4 Safety Testing Apparatus
-
0.9mm IEC60695-11-5 IEC Test Equipment Needle Flame Test Apparatus
-
IEC60068-2-63 Adjustable IEC Test Equipment Spring Operated Impact Hammer
Product Details
| Brand Name | HongTong | Place of Origin | China | |
| Model Number | IPD-6 |
Product Description
Certification:TUV、ITS、CSA、BV、SGS 、CNAS
220V?50Hz?Light?Testing?Equipment?Lamp?Tilt?Test?Bench?0-30?Degree?GB7000
Product information:

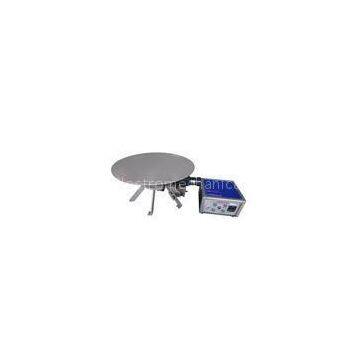

This device complies with GB7000 and other standards, the device consists of a work surface and angle adjustment device, is suitable for all types of portable lamps and similar electrical appliances products for mechanical stability test, the test sample is placed ?on countertops, to assess its mechanical stability through different tilt angles.
Technical specification and parameter configuration
|
Working condition: Environment:0℃～+40℃；Working power supply :220V±10%?? 50Hz |
|
Technical index: 1, Tilt angle :0-30 ° stepless adjustable, electric control, encoders intelligent digital display; equipped with angle measuring instrument calibration, easy to operate, high accuracy angle, precision ± 0.5 °; 2, The maximum weight load: 50kg, (load can be improved as per customer requirements)steel plate surface is treated by painting; 3, Motor speed: 0.50r/min (frequency control for optional), there are reliable earthing contact and power plug connector on the test bench of accessible metal surface; 4, Table diameter: 800mm； 5, The test bench with stable whole structure, and beautiful appearance. |
Reference pictures:
