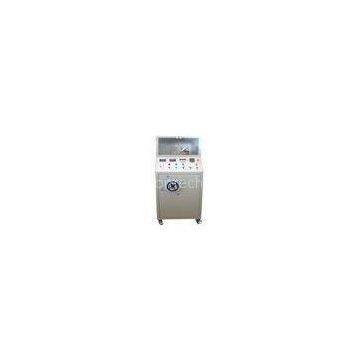

Heavy Current Arc Ignition Test Apparatus IEC 60950-1 / BS EN 60950-1

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HongTong		Place of Origin	China
Model Number	HC-1

Product Description

Delivery Time:30 days
Certification:TUV、ITS、CSA、BV、SGS 、CNAS

Heavy Current Arc Ignition Test Apparatus , Electrical Material Test Equipment

Product information:

This device conforms to standard requirement of IEC 60950-1,BS EN 60950-1,BS 7002, UL746A,IEC60947.1, IEC730.1. It is suitable for Arcing resistance test of electric and electronic products, household appliances and its materials. The working principle is to simulate the electric leakage on the insulator which may cause among different polar of live parts or between live parts and grounded (earthed) metal parts

?It is used to measure and assess the arc resistance performance of insulator under the prescribed voltage.

Heavy current ignition tester adopts dual electrodes. With specific current (33A) and power factor (COSφ0.5), according to a certain arc strike speed (254mm/s) and repetition frequency (40 times/min), repeatedly arc strike to 200 times on the surface of specimen. The large current arc ignition performance (HAI) can be assessed according to whether the sample can be ignited. The smaller of the grade number, the more difficult for burning material.

Technical parameters:

? Working voltage	220V/50Hz,1KVA
Arc strike current	33A±5%A
Arc strike speed	40 times/min.
Electrode separation velocity	254±25㎜/S
Arc strike times	0-9999 can be preset
Electrode material	Static electrode—copper,dia.Ф3.5,top bevel angle 30° Moving electrode—stainless steel,dia.Ф3.0,?top cone angle60°
Electrode included angle	Form 45°with level,electrode head radius of curvature 0.1mm
Dropping liquid interval	30±5S,adjustable
Dropping liquid height	35±5mm
Dropping liquid delay	0.2S(magnetic valve opening time)
Dropping liquid size	45～50 drops/cm3
