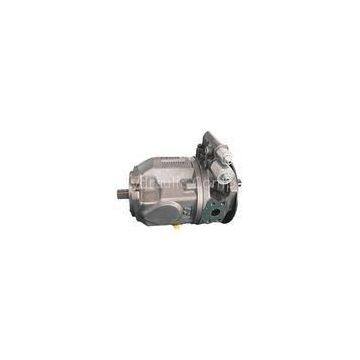

Low noise SAE splined Shaft oil Tandem Hydraulic Pump , Inch Thread
- 0 Metric Ton / Metric Tons per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Clockwise Torque Control Pressure Tandem Hydraulic Piston Pump For Truck , Boat
-
Engineering Machine Tandem Hydraulic Pump for Excavator , A10V Rear Port Type
-
High Pressure And Flow Control Commercial Tandem Hydraulic Pump with SAE splined
-
Clockwise Rotation 280bar Tandem Hydraulic Piston Pump SAE splined , 18cc Displacement
-
Low noise High Pressure Tandem Hydraulic Pump Pressure and Flow Control OEM
-
SAE 2 hole UNC Inch Thread Tandem Hydraulic Pump , Variable Displacement Piston Pump
Product Details
| Brand Name | Hengyuan Hydraulic | Place of Origin | China | |
| Model Number | A10VSO18 DFR/31R-PSC62K01 |
Product Description
Certification:ISO9000
Low noise SAE splined Shaft oil Tandem Hydraulic Pump , Inch Thread ?
Quick details
Tandem Hydraulic Pump
Low noise, Small Volume
Clockwise Rotation
Splined shaft
SAE 2 hole UNC inch thread
High Pressure Control Tandem Hydraulic Pump
Applications:
Hydraulic system. Ship Hydraulic system.
Axial piston pump, displacement is 18cc.
Pressure and Flow control
Clockwise Rotation
Perbunan seals
Splined shaft
SAE 2 hole UNC inch thread
Thru-drive Rear Cover, can connect another pump
Specifications:
Maximum permissible pressure of leakage fluid (at port L,L1):Maximum0.5 bar higher than
The inlet pressure at port S,but no higher than 2 bar absolute pressure.
|
Specifications: |
16/18 |
28 |
45 |
71 |
100 |
140 |
|||
|
Displacement |
Vg? max |
cm3 |
18 |
28 |
45 |
71 |
100 |
140 |
|
|
Max speed |
nmax |
rpm |
3300 |
3000 |
2600 |
2200 |
2000 |
1800 |
|
|
Max. flow |
in? nmax |
qv |
L/min |
59.4 |
84 |
117 |
156 |
200 |
252 |
|
in 1500 r/min |
27 |
42 |
68 |
107 |
150 |
210 |
|||
|
Max. power (Δp=280bar) |
in nmax |
Pmax |
Kw |
27.7 |
39 |
55 |
73 |
93 |
118 |
|
in 1500 r/min |
12.6 |
20 |
32 |
50 |
70 |
98 |
|||
|
Max. torque (Δp=280bar) |
in Vg? max |
Tmax |
Nm |
80.1 |
125 |
200 |
316 |
445 |
623 |
|
Weight |
m |
Kg |
12 |
15 |
21 |
33 |
45 |
