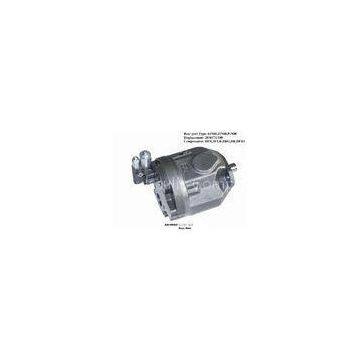

Clockwise Hydraulic Axial Piston Pump For Truck Boats hydraulic system 28cc single pump

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Hengyuan Hydraulic		Place of Origin	China
Model Number	A10VSO28 DFR/31R-PPA12N00

Delivery Time:15days
Certification:ISO9001

Clockwise Hydraulic Axial Piston Pump For Truck Boats hydraulic system 28cc single pump

Low?Noise High?Efficiency?Axial?Piston?Hydraulic?Pump?For?Boat? , Truck

Quick details

Boats Hydraulic System Axial Piston Hydraulic Pump

?Axial piston pump, displacement is 28cc

Clockwise Rotation

?Perbunan seal

Side port type, single pump

Parameter

Operating pressure range	Pressure at port B
~ inlet	Nominal pressure PN----------------280bar
?	Peak pressure PMAX-----------------------350bar
Absolute pressure at port S	Clearance work pressure (10% cycle)---------315bar
??P abs min------------------------0.8bar	Applications with intermittent operating pressures up to
? P abs max------------------------30bar	215 bar at 10% duty are permitted .
?	?

???? Case drain pressure

Maximum permissible pressure of leakage fluid (at port L,L1):Maximum0.5 bar higher than

The inlet pressure at port S,but no higher than 2 bar absolute pressure.

Specifications:

Maximum permissible pressure of leakage fluid (at port L,L1):Maximum0.5 bar higher than

The inlet pressure at port S,but no higher than 2 bar absolute pressure.
